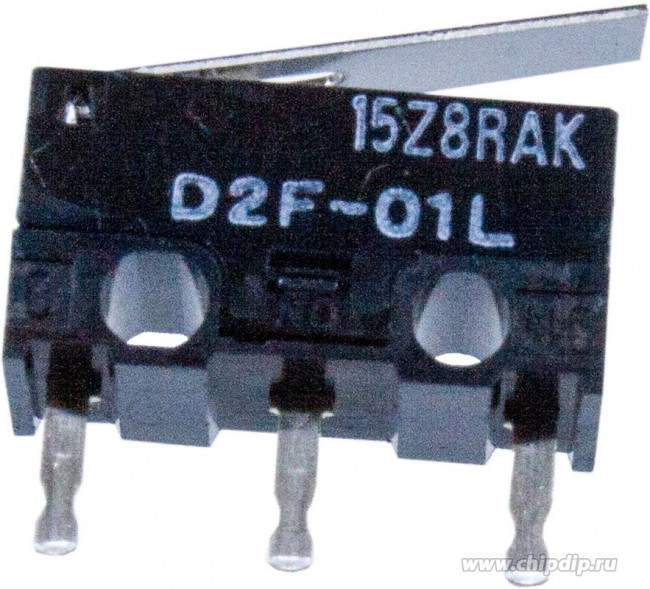

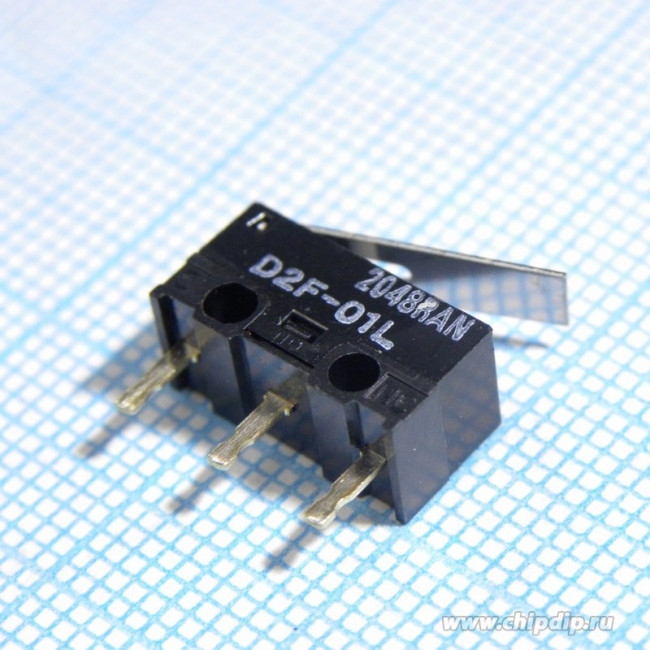

D2F01L, Switch Snap Action N.O./N.C. SPDT Hinge Lever 0.1A 30VDC 0.78N Thru-Hole PC Pins

Electromechanical > Switches > Snap ActionSWITCH, LEVER, SPDT, 0.1A, 30VDC; Microswitch Type:Snap Action; Microswitch Actuator:Lever; Contact Configuration:SPDT; Switch Terminals:Through Hole; Contact Current Max:100mA; Contact Voltage DC Nom:30VDC; Product Range:D2F Series; Contact Voltage AC Nom:-; Operating Force Max:0.78N; Actuator Type:Lever; Approval Bodies:CSA, UL; Contact Current @ Contact Voltage DC Max:0.1A; Contact Resistance:30mohm; Differential Travel Max:0.05mm; External Depth:12.8mm; External Length / Height:6.5mm; External Width:5.8mm; Fixing Centres:6.5mm; Insulation Resistance:100Mohm; Insulation Resistance Voltage:500V; Lever Length:12.8mm; No. of Electrical Operations:30000; Operating Force:0.78N; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Over Travel Min:0.55mm; Pre-travel:0.5mm; Release Force:0.05N
