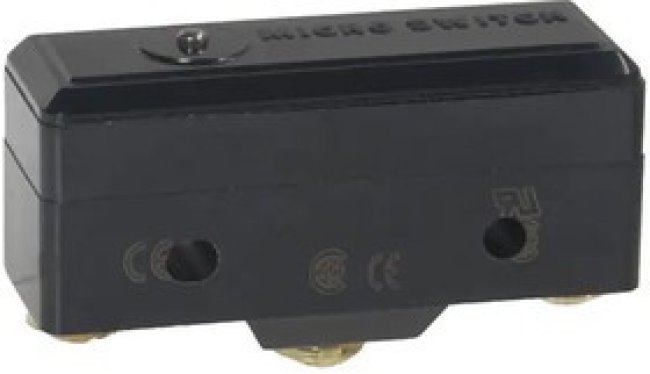

Name: BZ-2R-A2, Switch Snap Action N.O./N.C. SPDT Pin Plunger 15A 125VAC 3.61N Screw Mount Screw Automotiv
SKU: BZ-2R-A2

BZ-2R-A2, Switch Snap Action N.O./N.C. SPDT Pin Plunger 15A 125VAC 3.61N Screw Mount Screw Automotiv

Подробное описание

2 760 ₽

- +

Бонус: 55.2 !

Бонусная программа

Итого: 2 760 ₽

Купить

Switch SPDT Chassis Mount

Основные
actuator type	Round (Pin Plunger)
circuit	SPDT
current rating (amps)	15A (AC), 500mA (DC)
differential travel	0.002"" (0.05mm)
eccn	EAR99
htsus	8536.50.9040
mechanical life	20,000,000 Cycles
moisture sensitivity level (msl)	1 (Unlimited)
mounting type	Chassis Mount
operating force	255 ~ 368gf
operating position	0.625"" (15.9mm)
operating temperature	-55В°C ~ 125В°C
overtravel	0.005"" (0.13mm)
package	Bulk
pretravel	0.015"" (0.4mm)
release force	113gf
rohs status	RoHS Compliant
series	BZ ->
switch function	On-Mom
termination style	Screw Terminal
voltage rating - ac	125V
voltage rating - dc	125V
