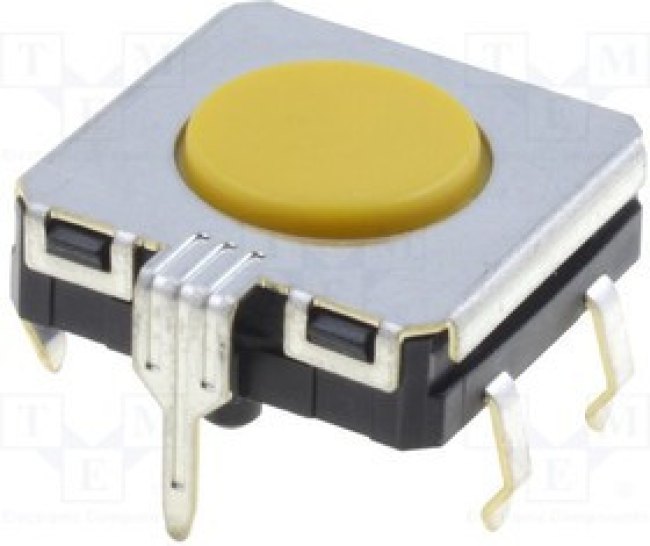

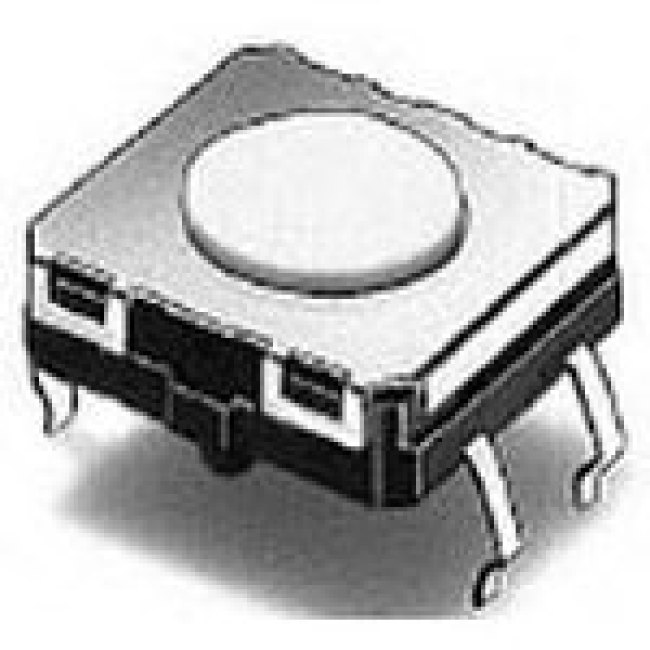

Name: B3W-4105, Микропереключатель TACT, SPST-NO, Пол: 2, 0,05A/24ВDC, THT, нет
SKU: B3W-4105

B3W-4105, Микропереключатель TACT, SPST-NO, Пол: 2, 0,05A/24ВDC, THT, нет

Подробное описание

Основные
actuator	Top Actuated
actuator color	Yellow
actuator height off pcb, vertical	4.30mm

120 ₽

- +

Бонус: 2.4 !

Бонусная программа

Итого: 120 ₽

Купить

Переключатели и индикаторы\Микропереключатели\Микропереключатели TACTTactile Switch SPST-NO Top Actuated Through Hole

Основные
actuator	Top Actuated
actuator color	Yellow
actuator height off pcb, vertical	4.30mm
actuator length (mm)	0.75
actuator orientation	Top Actuated
actuator style	Flat Round Button
actuator type	Standard
body orientation	Straight
circuit	SPST-NO
contact rating @ voltage	0.05A @ 24VDC
dielectric strength	500VAC
eccn	EAR99
eccn (us)	ear99
eu rohs	compliant
features	Grounding Pin, Sealed - Fully
hts	8536.50.90.65
htsus	8536.50.9031
illumination	Non-Illuminated
ingress protection	IP67 - Dust Tight, Waterproof
ip rating	IP67
length	12.00mm
maximum contact resistance (mohm)	100
maximum current rating (a)	0.05@24VDC
maximum operating temperature (°c)	70
mechanical life	1,000,000 Cycles
mechanical life (cycles)	3000000
minimum insulation resistance (mohm)	100
minimum operating temperature (°c)	-25
moisture sensitivity level (msl)	1 (Unlimited)
mounting	Through Hole
mounting type	Through Hole
number of terminals	4
operating force	350gf
operating force (n)	3.43
operating temperature	-25В°C ~ 70В°C
outline	12.00mm x 12.00mm
package	Bulk
packaging	Bag
part status	active
pole throw configuration	SPST
product depth (mm)	13.8
product height (mm)	4.3
product length (mm)	13.03
product weight (g)	1
quiescent current	SPST
rohs status	RoHS Compliant
row spacing (mm)	12.5
seal description	Rubber
seal location	Construction
series	B3W ->
switch configuration	N.O.
switch function	Off-Mom
switch height	4.30mm
switch travel	0.30mm
terminal pitch (mm)	5
termination style	PC Pins
вес, г	0.96
width	12.00mm
