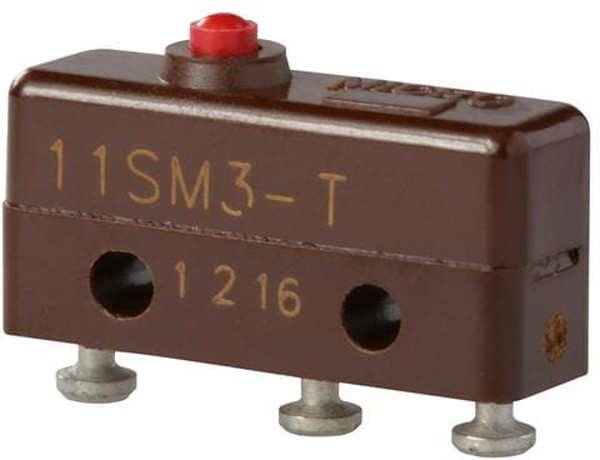

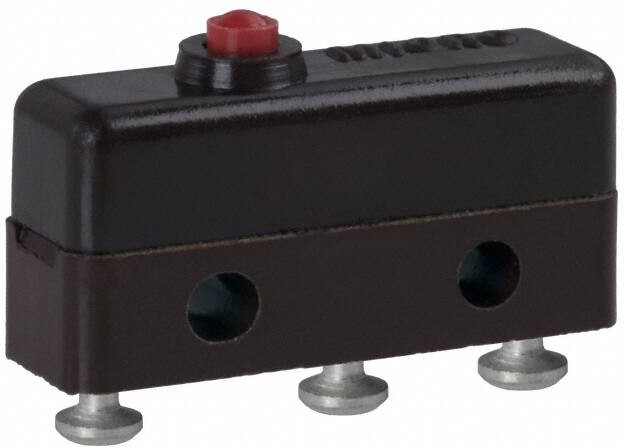

11SM3-T
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Switch SPDT Chassis Mount
| Информация о производителе | |
| Производитель | Honeywell International |
| Бренд | Honeywell International |
| Основные | |
| actuator: | Plunger |
| actuator style | Pin Plunger |
| actuator style: | Plunger |
| actuator type | Round (Pin Plunger) |
| automotive | No |
| base material | Phenolic |
| body orientation | Straight |
| category | Switches |
| circuit | SPDT |
| contact form: | SPDT |
| current rating | 5A(AC/DC) |
| current rating: | 5 A |
| current rating (amps) | 5A (AC/DC) |
| Дата загрузки | 10.03.2024 |
| differential travel | 0.004"" (0.1mm) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| electrical life | - |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 100 |
| family | Snap Action, Limit Switches |
| features | - |
| htsus | 8536.50.9040 |
| illuminated: | Non-Illuminated |
| ingress protection | - |
| категория | Кнопки, переключатели, разъемы, реле/Переключатели |
| manufacturer: | Honeywell |
| maximum current rating (a) | 5 |
| maximum movement differential (mm) | 0.1 |
| maximum operating temperature (°c) | 121 |
| mechanical life | 10,000,000 Cycles |
| mechanical life (cycles) | 10000000 |
| minimum operating temperature (°c) | -54 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Screw Mount |
| mounting style: | Chassis Mount |
| mounting type | Chassis Mount |
| online catalog | MICRO SWITCH™ SM Series |
| operating force | 141gf |
| operating force: | 1.4 N |
| operating force (n) | 1.39 |
| operating position | 0.330"" (8.4mm) |
| operating temperature | -55В°C ~ 125В°C |
| overtravel | 0.005"" (0.13mm) |
| package | Tray |
| packaging | Bulk |
| партномер | 8020043475 |
| part status | active |
| pole throw configuration | SPDT |
| ppap | No |
| pretravel | 0.020"" (0.5mm) |
| product category: | Basic/Snap Action Switches |
| product training modules | Electromechanical Switch Technology |
| product type: | Snap Action Switches |
| release force | 28gf |
| rohs status | RoHS Compliant |
| series | SM -> |
| series: | SM |
| standard package | 20 |
| subcategory: | Switches |
| switch configuration | N.O./N.C. |
| switch function | On-Mom |
| switch function: | ON-(OFF), OFF-(ON) |
| termination style | Solder Turret |
| termination style: | Solder Turret |
| type: | Micro Switch |
| voltage rating - ac | 250V |
| voltage rating ac: | 250 VAC |
| voltage rating - dc | 30V |
| voltage rating dc: | 30 VDC |
| Время загрузки | 17:42:01 |
