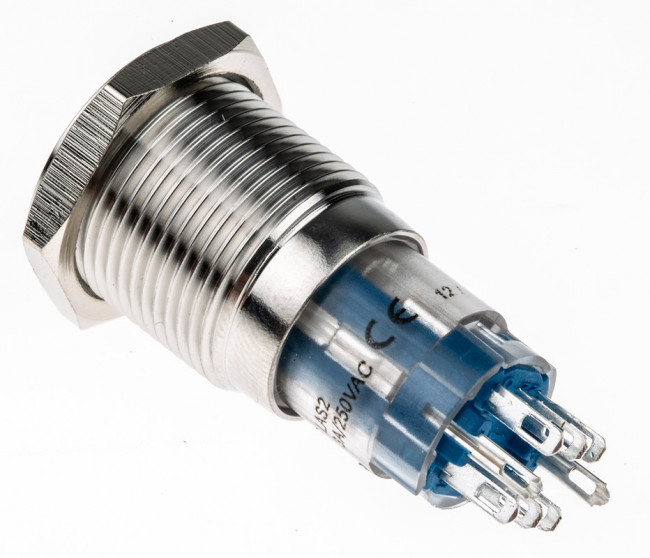

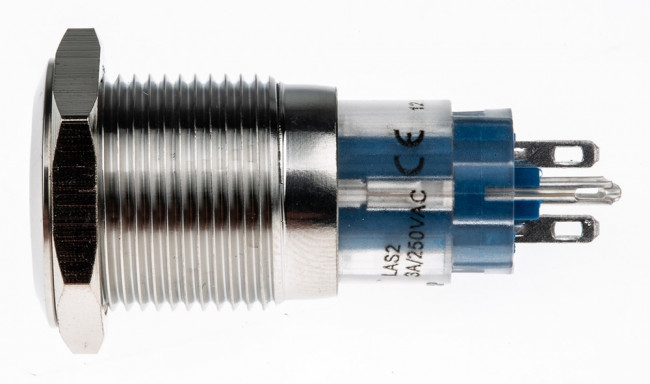

MP0045/1E2RD012

ЭлектроэлементSWITCH, FLUSH LATCHING, RED ILLUM; Product Range:MP0045/1E Series; Contact Configuration:DPDT; Switch Operation:Off-On; Contact Current Max:3A; Contact Voltage AC Nom:250V; Illumination Colour:Red; Contact Voltage DC Nom:-; Switch Terminals:Solder Lug; SVHC:No SVHC (27-Jun-2018); Actuation Type:Flat; Actuator / Cap Colour:Natural; Bezel Diameter:18mm; Contact Current @ Contact Voltage AC Max:3A; Contact Current AC Max:3A; Contact Resistance:50mohm; Contact Voltage VAC:250V; External Depth:29.5mm; IP Rating:IP40; Insulation Resistance Voltage:500VAC; LED Colour:Red; LED Voltage:12VDC; Material:Stainless Steel; No. of Electrical Operations:30000; No. of Mechanical Operations:200000; Operating Temperature Max:55°C; Operating Temperature Min:-30°C; Panel Cutout Diameter:16.2mm; Panel Thickness Max:10mm; Pushbutton Actuator Style:Flush; Pushbutton Switch Type:Anti-Vandal; Switch Mounting:Panel
