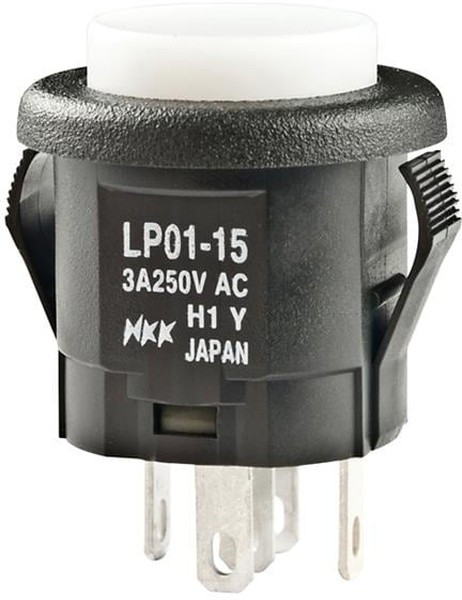

LP0115CMKW015DB
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Switches\Pushbutton SwitchesКнопочный переключатель SPDT Standard, монтаж на панели с подсветкой, защелкивающийся
| Информация о производителе | |
| Производитель | NKK Switches |
| Бренд | NKK Switches |
| Основные | |
| actuator: | Round |
| actuator color | White |
| actuator style | Round Button |
| actuator style: | Plunger |
| actuator type | Round, Button |
| automotive | No |
| base material | Diallyl Phthalate |
| body orientation | Straight |
| california prop 65 | Warning Information |
| cap color | White |
| circuit | SPDT |
| color - actuator/cap | White |
| contact form: | SPDT |
| contact plating: | Silver |
| current rating: | 3 A |
| current rating (amps) | 3A (AC/DC) |
| Дата загрузки | 11.03.2024 |
| dielectric strength | 1000VAC |
| eccn | EAR99 |
| eccn (us) | ear99 |
| electrical life | 50,000 Cycles |
| electrical life (cycles) | 100000 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 1 |
| flammability rating: | UL 94 V-0 |
| housing material | Glass Fiber/Polyamide |
| housing material: | Polyamide, Glass Fiber Reinforced |
| htsus | 8536.50.9031 |
| illuminated: | Illuminated |
| illumination: | Illuminated |
| illumination color | Amber |
| illumination type, color | LED, Amber |
| illumination voltage (nominal) | 2 VDC |
| категория | Кнопки, переключатели, разъемы, реле/Переключатели |
| life: | 50000 Cycles |
| manufacturer: | NKK Switches |
| maximum contact resistance (mohm) | 50 |
| maximum current rating (a) | 3@250VAC 30VDC |
| maximum operating temperature (°c) | 50 |
| mechanical life | 500,000 Cycles |
| mechanical life (cycles) | 500000 |
| minimum insulation resistance (mohm) | 200 |
| minimum operating temperature (°c) | -10 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Panel Mount |
| mounting style: | Panel Mount, Snap-In |
| mounting type | Panel Mount, Snap-In |
| number of terminals | 3 |
| operating temperature | -10В°C ~ 50В°C |
| package | Bulk |
| panel cutout dimensions | Circular - 17.30mm Dia |
| партномер | 8005955598 |
| part # aliases: | LP01-15CH1CKSS1NY |
| part status | active |
| pole throw configuration | SPDT |
| ppap | No |
| product category: | Pushbutton Switches |
| product type: | Pushbutton Switches |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| seal description | Epoxy |
| seal location | Terminals |
| series | LP01 -> |
| series: | LP01 |
| subcategory: | Switches |
| switch configuration | ON(ON) |
| switch function | On-Mom |
| switch function: | ON-(OFF) |
| terminal seal: | Epoxy |
| termination style | Solder, Quick Connect - 0.110"" (2.8mm) |
| termination style: | Quick Connect |
| thread size | M16P1 |
| type | Standard, Illuminated |
| voltage rating - ac | 125V |
| voltage rating ac: | 125 VAC |
| voltage rating - dc | 30V |
| voltage rating dc: | 30 VDC |
| Время загрузки | 12:39:09 |
