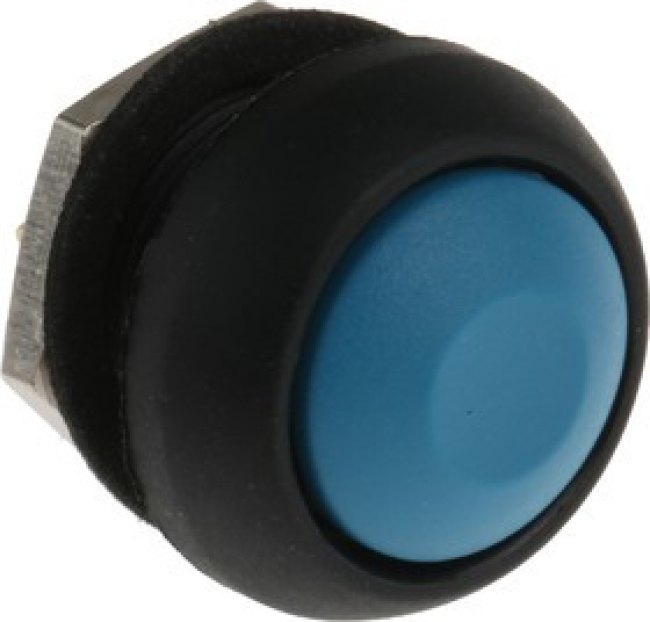

ISR3SAD100

ЭлектроэлементPUSHBUTTON, PLASTIC, SOLDER, BLUE; Switch Operation:Momentary; Contact Configuration:SPST-NO; Contact Voltage AC Nom:125V; Contact Voltage DC Nom:50V; Contact Current Max:400mA; Switch Terminals:Solder Lug; Product Range:IS Series; SVHC:No SVHC (15-Jan-2018); Actuation Type:Dome; Actuator / Cap Colour:Blue; Behind Panel Depth:13mm; Colour:Blue; Contact Current AC Max:400mA; Contact Current DC Max:100mA; Contact Resistance:50mohm; Contact Voltage VAC:32V; Contact Voltage VDC:50V; External Length / Height:20mm; IP / NEMA Rating:IP67; IP Rating:IP67; Illumination Colour:Non-illuminated; Insulation Resistance:1Gohm; No. of Electrical Operations:500000; No. of Mechanical Operations:1000000; Operating Force Max:5N; Operating Force Min:2N; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Panel Cutout Diameter:13.6mm; Pushbutton Actuator Style:Round; Pushbutton Switch Type:Industrial; Switch Mounting:Panel; Travel:1.5mm
