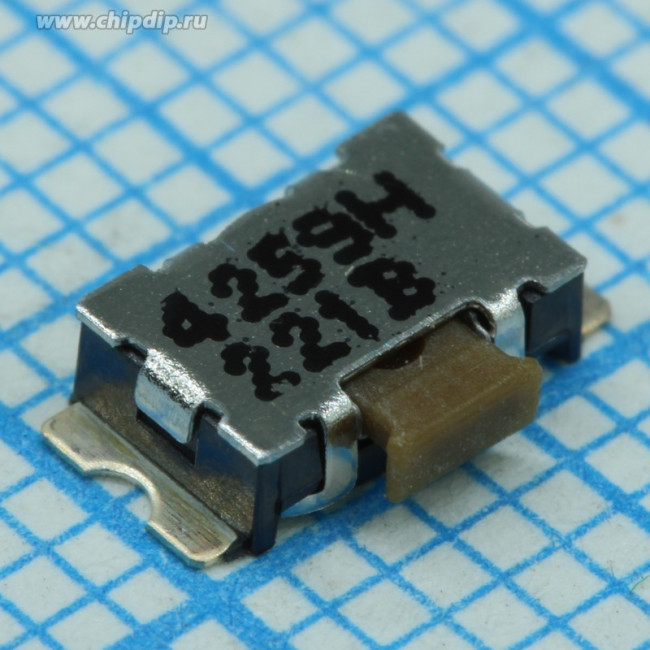

KSS221G LFS, Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 32VDC 1VA 100000Cycles 2N SMD T/R

Electromechanical > Switches > TactileTACT SWITCH, SIDE ACTUATED, LOW; Product Range:KSS Series; Actuator Orientation:Side Actuated; Switch Mounting:SMD; Actuator Style:Rectangular Button; Actuating Force:200gf; Contact Rating:50mA at 32VDC; Switch Dimensions (L x W):5.5mm x 4.4mm; IP Rating:IP40; Illumination:Non Illuminated; SVHC:No SVHC (15-Jan-2019); Actuation Type:Side; Actuator Type:Plunger; Contact Configuration:SPST-NO; Contact Current DC Max:50mA; Contact Current Max:50mA; Contact Current Min:1mA; Contact Resistance:100mohm; Contact Voltage DC Max:50V; Contact Voltage DC Nom:32V; DC Power:1VA; Dielectric Strength VDC:250V; External Depth:4.4mm; External Length / Height:1.6mm; External Width:7mm; No. of Mechanical Operations:100000; Operating Force:2N; Operating Force Max:40N; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Switch Terminals:Solder
