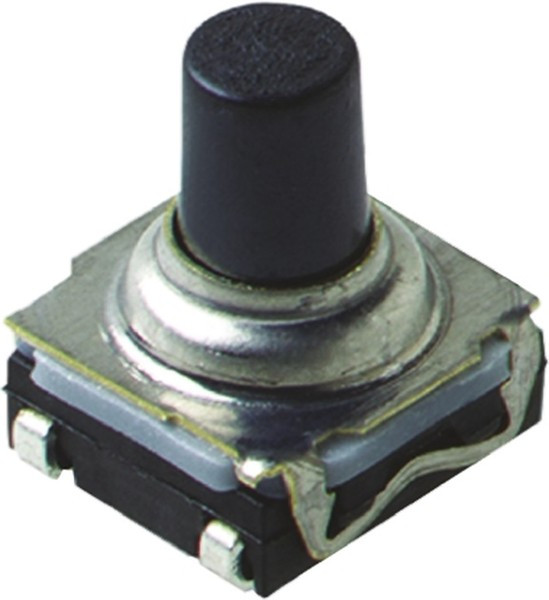

KSC641J LFS, Switch Tactile N.O. SPST Round Button J-Bend 0.05A 32VDC 1VA 300000Cycles 3.4N SMD T/R

Оставить отзыв
В избранноеВ сравнение
Артикул: KSC641J LFS
Кнопки, переключатели, разъемы, реле Кнопки Тактовые C&K Switches KSC641J LFS, Switch Tactile N.O ...
Информация о производителе
ПроизводительC&K Switches
БрендC&K Switches
Основные
actuator length (mm)03.05.2024
130
+
Бонус: 2.6 !
Бонусная программа
Итого: 130
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
The KSC Series tactile switches have been designed for surface mount applications with a choice of either J or gull wing terminals.
Информация о производителе
ПроизводительC&K Switches
БрендC&K Switches
Основные
actuator length (mm)03.05.2024
actuator styleRound Button
actuator typeTactile
body depth (mm)06.02.2024
body height (mm)02.07.2024
body length (mm)06.02.2024
body orientationStraight
contact configurationSPST
contact current rating50 mA
contact materialSilver
Дата загрузки16.03.2024
dielectric strength250VAC
eccn (us)ear99
electrical life (cycles)300000
eu rohscompliant
hts8536.50.90.65
ip ratingIP67
категорияКнопки, переключатели, разъемы, реле/Кнопки
maximum contact resistance (mohm)<100
maximum current rating (a)0.05@32VDC
maximum operating temperature+85°C
maximum operating temperature (°c)85
maximum power rating (va)1@32VDC
mechanical life300000Operations
mechanical life (cycles)300000
minimum insulation resistance (mohm)>10
minimum operating temperature-40°C
minimum operating temperature (°c)-40
mountingsurface mount
mounting typeSurface Mount
number of rows2
number of terminals4
operating force4±0.85 N
operating force (n)03.04.2024
operating temperature range-40 →+85°C
packagingTape and Reel
партномер8000996210
part statusactive
pole throw configurationSPST
product depth (mm)06.08.2024
product height (mm)07.07.2024
product length (mm)06.02.2024
row spacing (mm)05.08.2024
switching functionMomentary
switch configurationN.O.
switch operationMomentary
terminal length (mm)0.3
terminal pitch (mm)4
terminal typeJ Bend
termination styleJ-Bend
voltage rating32V dc
Время загрузки10:25:23
width6.2mm
