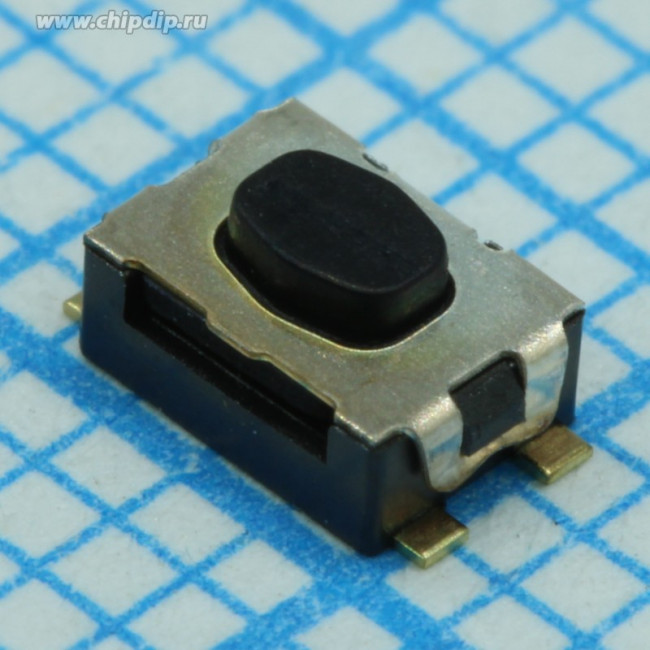

Name: KMR243GLFG, Round Button 10mA Brick nogging SPST NO 400gf 32V SMD Tactile Switches ROHS
Brand: C&K Switches
SKU: KMR243GLFG

Кнопки, переключатели, разъемы, реле Кнопки Тактовые C&K Switches KMR243GLFG, Round Button 10mA Brick nogging ...

Подробное описание

140 ₽

– +

Бонус: 2.8 !

Бонусная программа

Итого: 140 ₽

Купить

Switch Tactile N.O. SPST Button Gull Wing 0.01A 32VDC 0.2VA 100000Cycles 4N SMD Automotive T/R

Информация о производителе
Производитель	C&K Switches
Бренд	C&K Switches
Основные
actuator length (mm)	0.5(mm)
actuator style	Button
automotive	No
body orientation	Straight
contact material	Gold
contact plating	Gold
current rating (max)	0.01(A)
Дата загрузки	16.03.2024
dielectric strength	>=250Vrms
eccn (us)	ear99
eu rohs	compliant
ground terminal	Yes
категория	Кнопки, переключатели, разъемы, реле/Кнопки
maximum contact resistance (mohm)	<=100
maximum current rating (a)	0.01 32VDC
maximum operating temperature (°c)	125
maximum power rating (va)	0.2 32VDC
mechanical life	100000
mechanical life (cycles)	100000
minimum insulation resistance (mohm)	>=1000
minimum operating temperature (°c)	-40
mounting	surface mount
mounting style	Surface Mount
number of terminals	4
operating force	4(N)
operating force (n)	4
operating temp range	-40C to 125C
packaging	Tape and Reel
партномер	8022350273
part status	active
pole throw configuration	SPST
ppap	No
product depth (mm)	2.8(mm)
product height (mm)	1.9(mm)
product length (mm)	4.6(mm)
row spacing (mm)	04.01.2024
switching function	Momentary
switch configuration	N.O.
terminal pitch (mm)	1.61
terminal type	Gull Wing
termination style	Gull Wing
type	Micro-Miniature
Время загрузки	10:28:28
