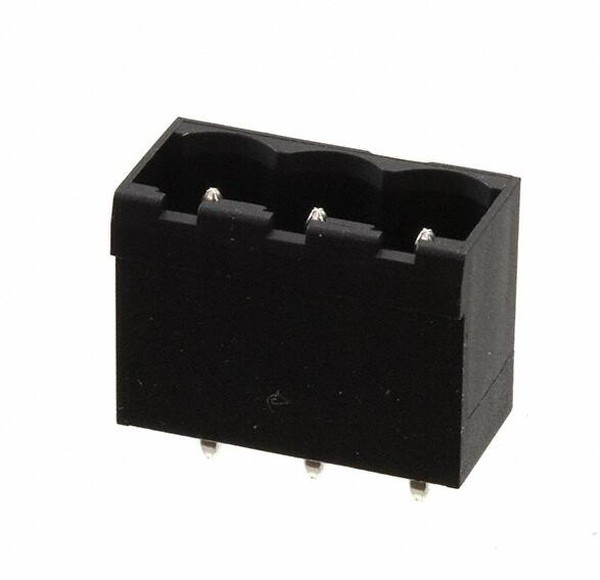

31220103, Клеммная Колодка, Штыревой Разъем, 5.08 мм, 3 вывод(-ов), 15 А, 300 В

Разъемы\Клеммные Колодки и Аксессуары\Вставные Штекеры и Гнезда Клеммных КолодокThe 31220103 from Metz Connect is a PT116xxVBBN (Type 220) series solderable pin header with 3 poles. The 5.08mm pitch, straight terminals plugged into the PCB and then soldered. • Closed ends• Codeable• Insulating material is black colour PA66 (class CTI 600), contact pin material is CuFe• Solder pin dimension is 1mm x 1mm, solder pin length is 3.25mm• Recommended PC board hole diameter is 1.5mm• Clearance and creepage distances is 4.08mm• IP 00 protection category according to IEC 60529• Operating temperature range from -40°C to 105°C• Overvoltage category III, pollution degree 3, 320V rated voltage, 4KV rated test voltage• Approved by UL, CRJUS, SEV standards
