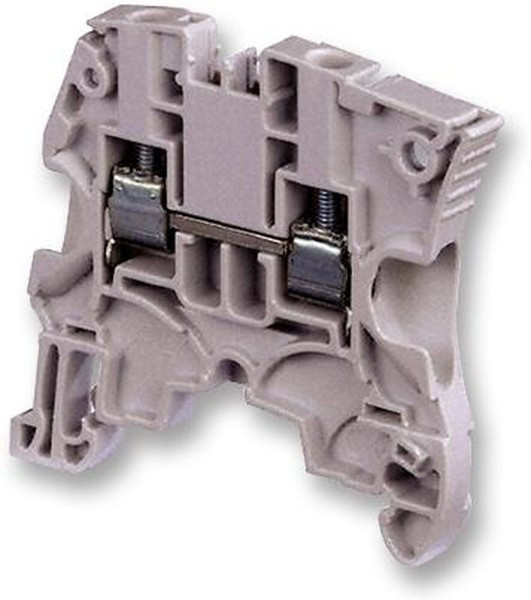

1SNK506010R0000, DIN Rail Terminal Blocks ZS6

Connectors\Terminal Blocks• Feed-through function• Dimension of fuse terminal is 47.3mm x 53mm x 6mm (D x H x W)• Net weight of 10.6g• Rated voltage is 1000V and rated current is 41A• Ambient operation air temperature range from -55°C to 110°C• Polyamide (PA) insulating material• Pollution degree is 3• UL 1059 recognized and CSA certified• Flammability rating meets UL94 V-0, IP20 rated and NEMA1 protection• Short circuit current rating (SCCR) of 100KA
