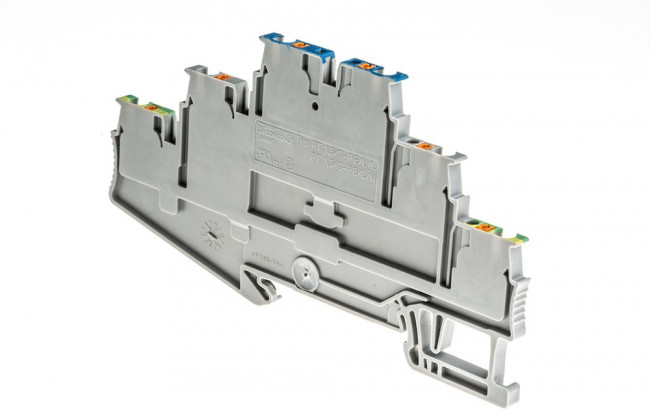

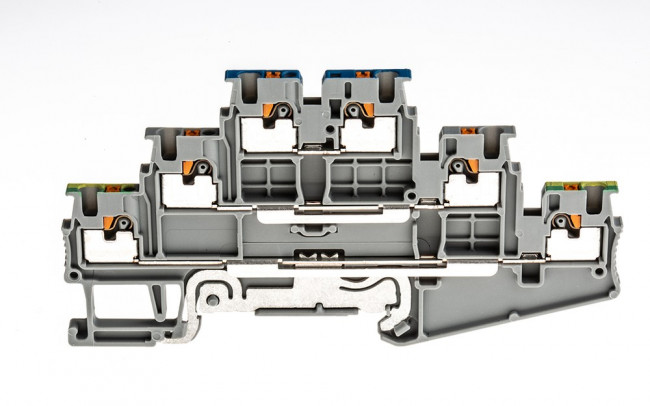

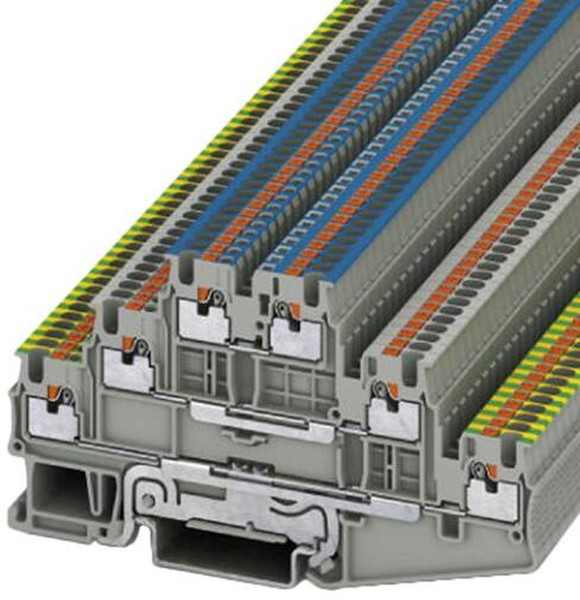

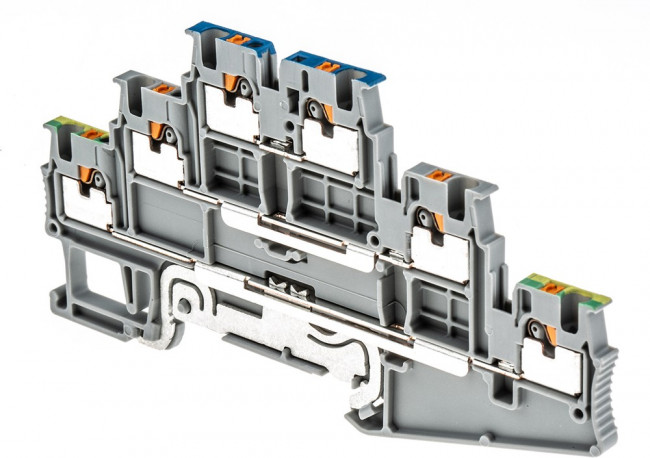

3213755, DIN Rail Terminal Blocks PT 1,5/S-PE/L/N

Оставить отзыв
В избранноеВ сравнение
Артикул: 3213755
Кнопки, переключатели, разъемы, реле Кабельные наконечники, клеммники и клеммы Колодки заземления клеммные Phoenix Contact 3213755, DIN Rail Terminal Blocks PT 1,5/S-PE/L/N
Информация о производителе
ПроизводительPhoenix Contact
БрендPhoenix Contact
Основные
american wire gauge26 → 16AWG
3 020
+
Бонус: 60.4 !
Бонусная программа
Итого: 3 020
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Electromechanical\Industrial Automation\Industrial Terminal Blocks\DIN Rail Terminal BlocksPush-In Technology DIN Rail Terminal Blocks Phoenix Contact Push-in Technology Terminal Blocks are the new generation of modular terminal blocks in the CLIPLINE Complete System. The Push-in Technology Terminal Blocks feature an easy, direct conductor connection using the advantages of the CLIPLINE Complete System. With up to 50% lower insertion force necessary, it is now possible to directly plug solid and stranded conductors with ferrules from 0.34mm² without tools.
Информация о производителе
ПроизводительPhoenix Contact
БрендPhoenix Contact
Основные
american wire gauge26 → 16AWG
colorGray
color:Gray
colourGrey
connection method:Push-In
current - iec15A
current rating15A
current rating:15 A
current - ul5A
Дата загрузки22.04.2024
eccnEAR99
factory pack quantity: factory pack quantity:50
flammability rating:UL 94 V-0
htsus8536.69.8000
категорияКнопки, переключатели, разъемы, реле/Кабельные наконечники, клеммники и клеммы
manufacturer:Phoenix Contact
material flammability ratingUL94 V-0
material - insulationPolyamide (PA), Nylon
maximum operating temperature:+85 C
minimum operating temperature:-60 C
model numberPT 1, 5/S-PE/L/N
moisture sensitivity level (msl)1 (Unlimited)
mounting style:DIN Rail(NS 35/7.5, NS 35/15)
number of levels3; 1 Grounded
number of positions6
number of positions:6 Position
packageBulk
партномер8005113549
part # aliases:PT_1.5/S-PE/L/N PT15SPELN
product category:DIN Rail Terminal Blocks
product type:DIN Rail Terminal Blocks
rohs statusRoHS Compliant
seriesPT 1.5/S-PE/L/N
series:PT
stripping length8mm
subcategory:Terminal Blocks
terminal - width3.5mm
termination methodPush In
termination stylePush In, Spring
tradename:CLIPLINE
typeFeed Through
type:Modular Terminal Block
вес, г13.99
video filePush In Terminal (PIT) BlocksTerminal Blocks from
voltage - iec500V
voltage rating500 V
voltage rating:500 V
voltage - ul600V
Время загрузки19:36:16
wire gauge max:14 AWG
wire gauge min:26 AWG
wire gauge or range - awg14-26 AWG
wire gauge or range - mmві0.14-1.5mmВІ
wire gauge range:26 AWG to 14 AWG
Отзывов нет
