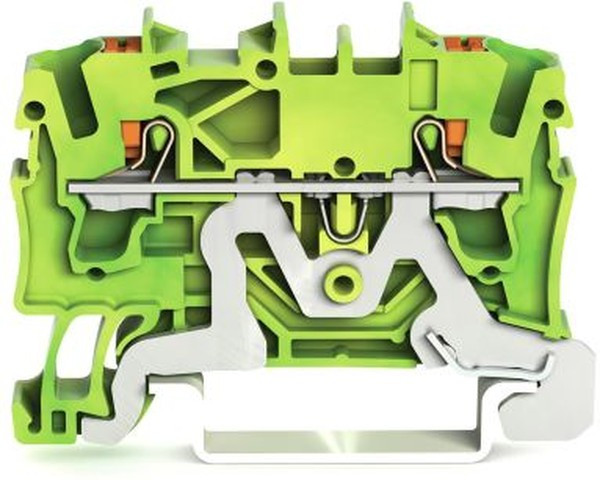

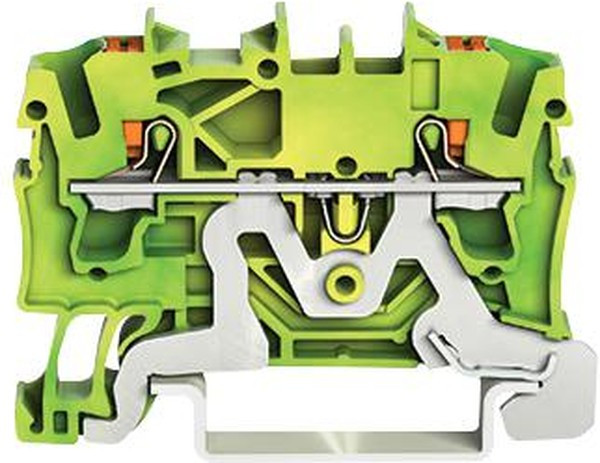

2202-1207, 2-пров. клемма с заземлением, 0,25 - 2,5 (4) мм2, наж.кнопка, желто-зелёная
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
2-conductor ground terminal block with push-button. Certified by UL 60079, IEC 60079-0, EN 60947, C22.2, EN 60947, CNCA-C23-01, TP TC 012/2011, IEC 60079, C22.2, UL 1059.
• With test port, side and centre marking• Connectable conductor materials is copper• For DIN-rail 35 x 15 and 35 x 7.5• Push-in CAGE CLAMP® connection technology• Operating temperature range from -60 to +105°C (continuous)• Green-yellow colour polyamide (PA66) insulation• Fire load is 0.107MJ, weight is 8.2g• Dimension width is 5.2mm x height is 48.5mm x depth from upper-edge of DIN-rail 32.9mm• 2.5mm² nominal cross-section• Total number of connection is 2 points
Отзывов нет
