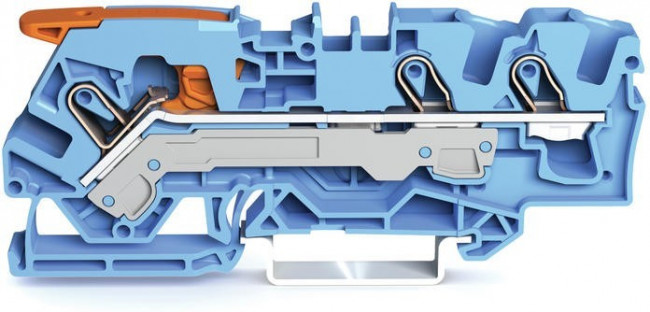

2106-1304, Feedthru Terminal, Cage Clamp, 3 Poles, 800V, 41A, 0.5 ... 10mm², Blue

Terminals3-conductor through terminal block with a lever. Certified by UL 60079, EN 60079-0, CNCA-C23-01, TP TC 012/2011, EN 60947, C22.2, IEC 60947, UL 1059, IEC 60079-0, IEC 60079. It has rated impulse voltage (III/3) 8kV/ current 41A (IEC/EN 60947-7-1), rated voltage UL (Use Group B) 600V/current UL (Use Group B) 50A, 30A, rated voltage CSA (Use Group B) 600V/current CSA (Use Group B) 45A. • With test port, suitable for Ex i applications, side and centre marking• Connectable conductor materials is copper• For DIN-rail 35 x 15 and 35 x 7.5• Push-in CAGE CLAMP® connection technology• Processing temperature range from -35 to +85 °C• Blue colour polyamide (PA66) insulation• Fire load is 0.284MJ, weight is 17.6g• Dimension width is 7.5mm x height is 90.8mm x depth from upper-edge of DIN-rail 32.9mm• 6mm² nominal cross-section• Total number of connection is 2 points
