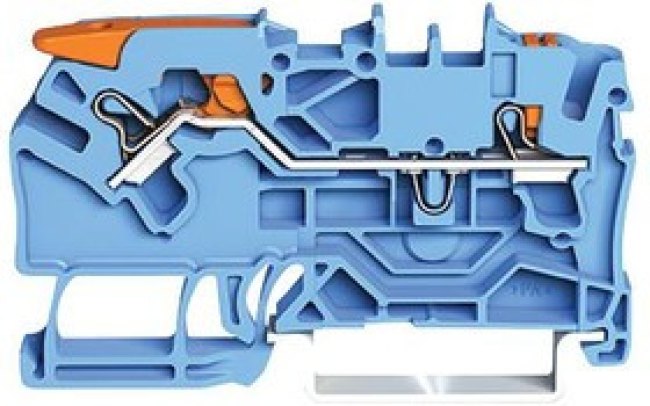

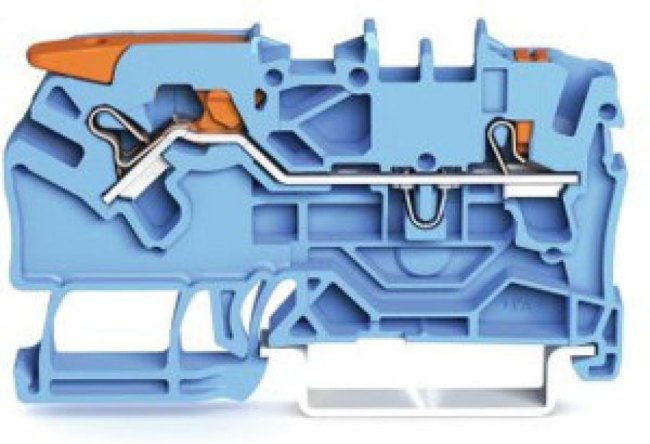

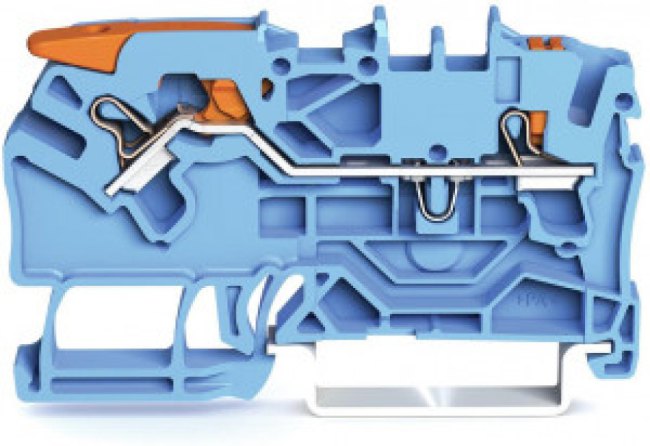

2102-5204, Feedthru Terminal, Cage Clamp, 2 Poles, 800V, 24A, 0.25 ... 4mm², Blue

Terminals2-conductor through terminal block with lever and push button. Certified by UL 60079, EN 60079-0, CNCA-C23-01, TP TC 012/2011, EN 60947, C22.2, EN 60947, IEC 60947, UL 1059 IEC 60079-0, IEC 60079. It has rated impulse voltage (III/3) 8kV/current 24A (IEC/EN 60947-7-1), rated voltage UL (Use Group B) 600V/current UL (Use Group B) 20A, rated voltage CSA (Use Group B) 600V/current CSA (Use Group B) 20A. • With test port, suitable for Ex i applications side and centre marking• Connectable conductor materials is copper• For DIN-rail 35 x 15 and 35 x 7.5• Push-in CAGE CLAMP® connection technology• Processing temperature range from -35 to +85 °C• Blue colour polyamide (PA66) insulation• Fire load is 0.139MJ, weight is 7g• Dimension width is 5.2mm x height is 61.5mm x depth from upper-edge of DIN-rail 32.9mm• 2.5mm² nominal cross-section• Total number of connection is 2 points
