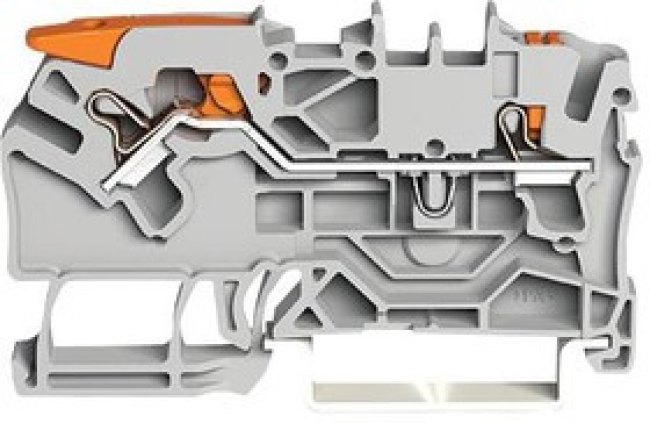

2102-5201, Клеммная колодка на DIN рейку, Through, 2 вывод(-ов), 22 AWG, 12 AWG, 2.5 мм², Зажим, 24 А

Разъемы\Клеммные Колодки и Аксессуары\Клеммные Колодки на DIN-рейку2-conductor through terminal block with lever. Certified by UL 60079, EN 60079-0, CNCA-C23-01, TP TC 012/2011, IEC 60079-0, IEC 60079, EN 60947, C22.2, IEC 60947, UL 1059. It has rated impulse voltage (III/3) 8kV/current 24A (IEC/EN 60947-7-1), rated voltage UL (Use Group B) 600V/current UL (Use Group B) 20A, rated voltage CSA (Use Group B) 600V/ current CSA (Use Group B) 20A. • With test port, side and centre marking• Connectable conductor materials is copper• For DIN-rail 35 x 15 and 35 x 7.5• Push-in CAGE CLAMP® connection technology• Processing temperature range from -35 to +85°C• Grey colour polyamide (PA66) insulation• Fire load is 0.139MJ, weight 7g• Dimension width is 5.2mm x height is 61.5mm x depth from upper-edge of DIN-rail 32.9mm• 2.5mm² nominal cross-section• Total number of connection is 2 points
