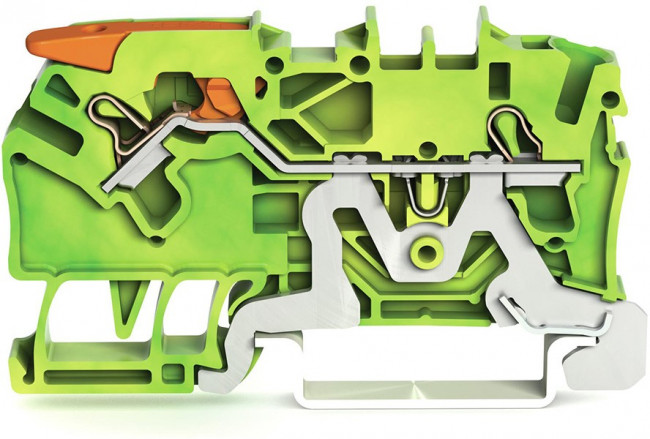

2102-1207, Клеммная колодка на DIN рейку, Ground, 2 вывод(-ов), 22 AWG, 12 AWG, 2.5 мм², Зажим, 24 А

Разъемы\Клеммные Колодки и Аксессуары\Клеммные Колодки на DIN-рейку2-conductor ground terminal block with lever. Certified by CNCA-C23-01, TP TC 012/2011, IEC 60079-0, IEC 60079, EN 60947, C22.2, EN 60947, IEC 60947, UL 1059. • With test port, side and centre marking• Connectable conductor materials is copper• For DIN-rail 35 x 15 and 35 x 7.5• Push-in CAGE CLAMP® connection technology• Processing temperature is -35 to +85 °C• Green-yellow colour polyamide (PA66) insulation• Fire load is 0.136MJ, weight of 9.9g• Dimension width is 5.2mm x height is 63.8mm x depth from upper-edge of DIN-rail 32.9mm• 2.5mm² nominal cross-section• Total number of connection is 2 points
