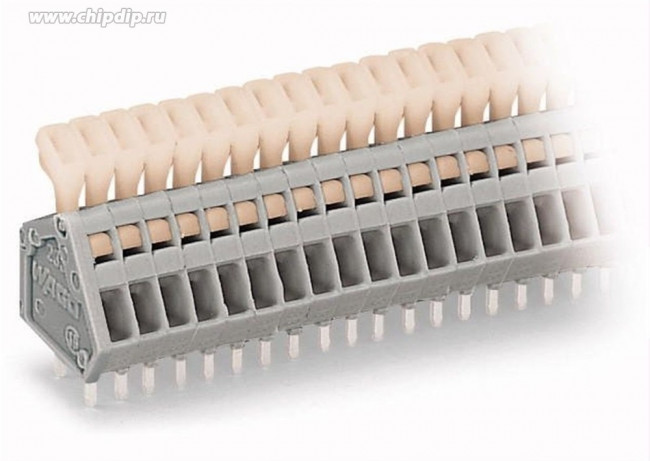

233-212

ЭлектроэлементTB, WIRE TO BRD, 12POS, 20AWG; Pitch Spacing:2.5mm; No. of Positions:12Ways; Wire Size AWG Min:28AWG; Wire Size AWG Max:20AWG; Conductor Area CSA:0.5mmВІ; Wire Connection Method:Push In; Rated Current:6A; Rated Voltage:160V; Block Orientation:Through Hole 30В°; Product Range:-; SVHC:No SVHC (15-Jan-2018); Approval Bodies:BV, CSA, UL; Colour:Light Grey; Connector Mounting:PCB Mount; Connector Type:Terminal Block, PCB; Contact Material:Copper; Contact Plating:Tin Plated Contacts; External Length / Height:32.3mm; Group A Voltage Rating AC:250V; Group B Voltage Rating AC:125V; Material:Nylon 6.6; Operating Temperature Max:105В°C; RMS Current (Irms):6A; Voltage Rating VAC:250V; Wire Area Size Max:0.5mmВІ; Wire Area Size Min:0.08mmВІ
