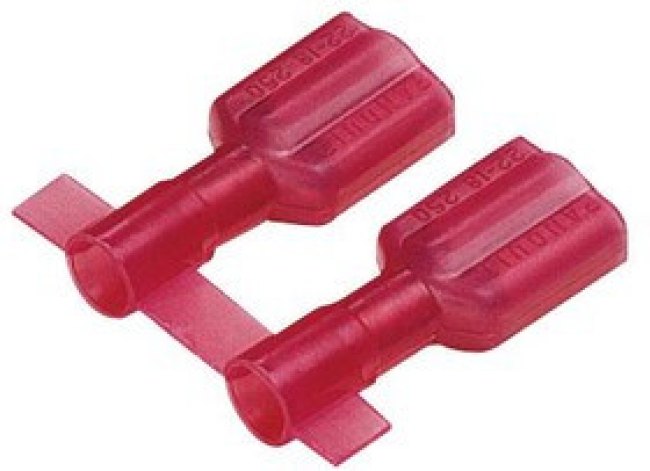

DNF18-111FIB-3K, Клеммы быстрого отключения, Disco-Lok DNF-FIB, Гнездовой Быстрого Соединения, 2.79мм x 0.51мм

Разъемы\Обжимные Клеммы / Паечные Клеммы и Стыковые Клеммы\Обжимные Клеммы Быстрого СоединенияThe DNF18-111FIB-3K from Panduit is a DNF-FIB series female disconnect. This vibration resistant female disconnect is made of tin plated brass. It is fully insulated in red colour nylon housing. The DNF18-111FIB-3K has a funnel entry barrel configuration and butted seam barrel. Continuously moulded design provides reliable, consistent performance through the applicator for a high quality termination every time. Fully insulated design provides protection from electrical shorts. Internal wire stop assures proper length of insertion into terminal barrel providing a higher quality connection. • Supports wire range of 22AWG to 18AWG (0.5mm² to 1mm²)• Wire strip length is 9/32'' (7.1mm)• Maximum voltage rating is 600V• UL 310 listed, CSA C22.2 No.153 certified• Maximum insulation diameter is 0.12inch (3mm)• Length is 0.71" (18mm), width is 0.19" (4.8mm)• Tab size is 0.110'' x 0.020" (2.8mm x 0.5mm)• Temperature rating is 221°F
