16G88-211E.1

Подробное описание

Основные
moisture sensitivity level (msl)	1 (Unlimited)
operating temperature	-30В°C ~ 85В°C
package	Tray
rohs status	RoHS Compliant

17 150 ₽

– +

Бонус: 343 !

Бонусная программа

Итого: 17 150 ₽

Купить

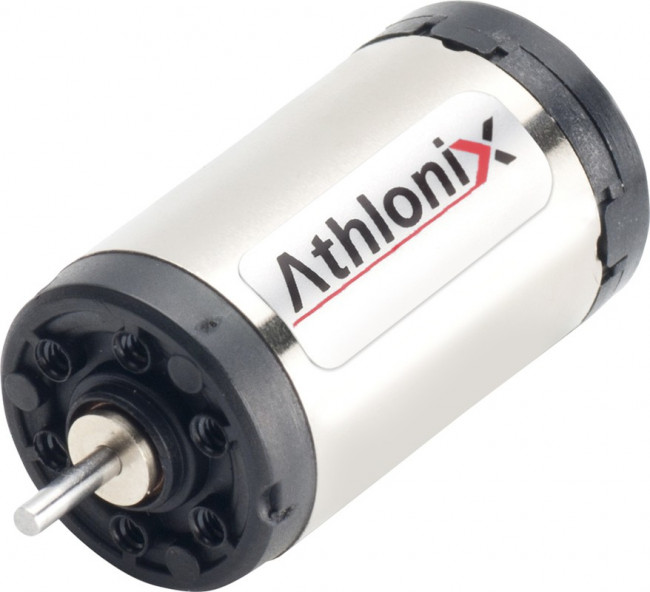

Motors, Solenoids, Driver Boards/Modules\Motors - AC, DCBrushed DC Motor Standard 9700 RPM 4.5W 12VDC

Основные
moisture sensitivity level (msl)	1 (Unlimited)
operating temperature	-30В°C ~ 85В°C
package	Tray
rohs status	RoHS Compliant
size / dimension	Round - 0.629"" Dia (16.00mm)
type	DC Motor
eccn	EAR99
htsus	8501.10.4060
weight	0.053 lb (24.04 g)
series	16G88 ->
Вес и габариты
function	Standard
voltage - rated	12VDC
termination style	Solder Tab
rpm	9700 RPM
motor type	Brushed
torque - rated (oz-in / mnm)	0.665 / 4.7
power - rated	4.5W
diameter - shaft	0.059"" (1.50mm)
length - shaft and bearing	0.295"" (7.50mm)
mounting hole spacing	0.394"" (10.00mm)
