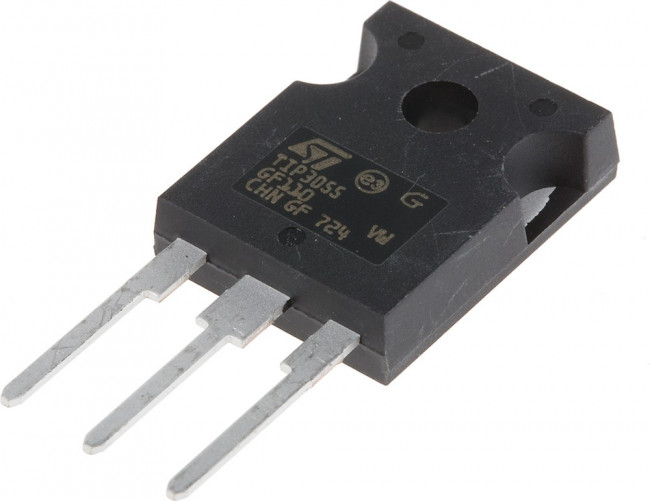

A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Дата загрузки
18.02.2024
Вес и габариты
вес, г
4.51
Высота
20.15 м
Информация о производителе
Производитель
STMicroelectronics
Бренд
STMicroelectronics
Основные
collector- base voltage vcbo
100 V
collector-emitter breakdown voltage
100V
collector-emitter saturation voltage
1 V
collector- emitter voltage vceo max
60 V
configuration
Single
continuous collector current
15 A
dc collector/base gain hfe min
20
dc current gain hfe max
70
factory pack quantity
600
gain bandwidth product ft
3 MHz
height
20.15 mm(Max)
категория
Электронные компоненты/Транзисторы
length
15.75 mm(Max)
manufacturer
STMicroelectronics
maximum collector base voltage
100 V
maximum collector emitter voltage
60 V
maximum dc collector current
15A
maximum operating frequency
3 MHz
maximum operating temperature
+150 C
maximum power dissipation
90 W
minimum dc current gain
20
minimum operating temperature
-65 C
mounting style
Through Hole
mounting type
Through Hole
number of elements per chip
1
package / case
TO-247-3
package type
TO-247
packaging
Tube
партномер
8008498582
pd - power dissipation
90W
pin count
3
product category
Bipolar Transistors-BJT
rohs
Details
series
500V Transistors
transistor configuration
Single

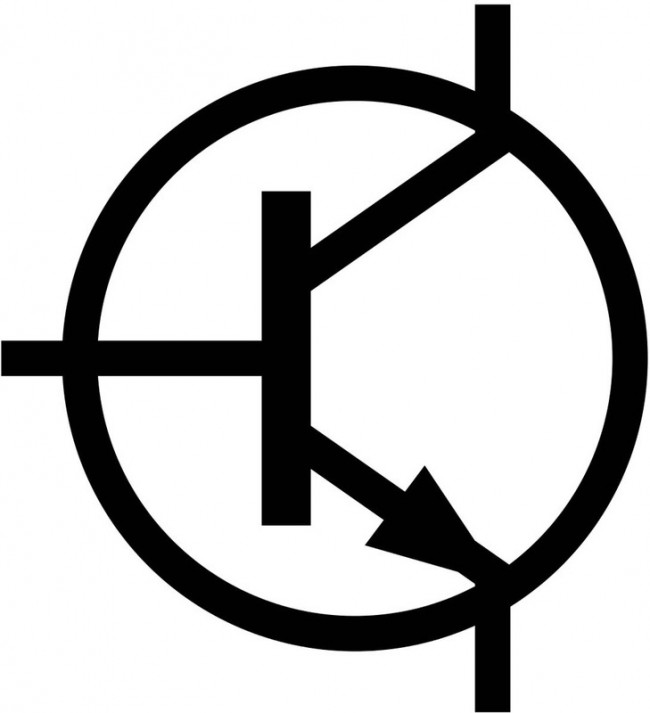

transistor polarity
NPN
transistor type
NPN
unit weight
0.229281 oz
Время загрузки
13:55:49
width
5.15 mm(Max)
