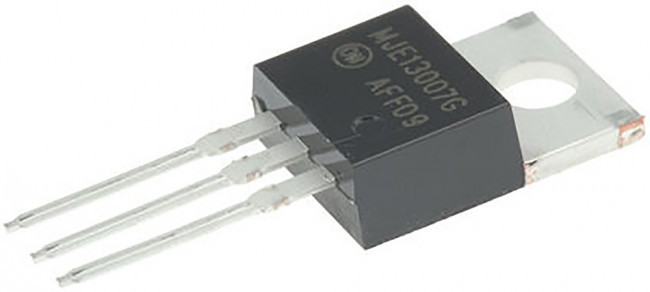

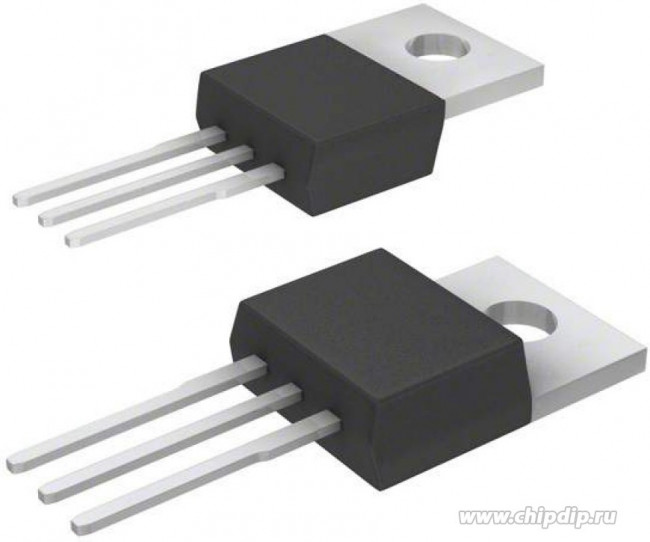

MJE13007

TRANSISTOR, NPN, TO-220; Transistor Polarity:NPN; Collector Emitter Voltage V(br)ceo:400V; Transition Frequency ft:14MHz; Power Dissipation Pd:80W; DC Collector Current:8A; DC Current Gain hFE:4hFE; Transistor Case Style:TO-220; No. of Pins:3Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:Lead (27-Jun-2018); Application Code:PHVS; Collector Emitter Saturation Voltage Vce(on):1.5V; Continuous Collector Current Ic Max:8A; Current Ic @ Vce Sat:5A; Current Ic Continuous a Max:5A; Current Ic hFE:5mA; Fall Time @ Ic:700ms; Full Power Rating Temperature:25°C; Gain Bandwidth ft Min:4MHz; Gain Bandwidth ft Typ:14MHz; Hfe Min:5; No. of Transistors:1; Operating Temperature Min:-65°C; Operating Temperature Range:-65°C to +150°C; Power Dissipation Ptot Max:80W; Voltage Vcbo:10VDC; Voltage Vces:700V
