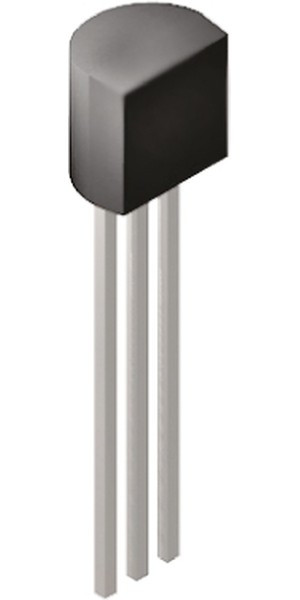

SS8550DTA, Bipolar Transistors - BJT TO92 PNP 2W A/P
Оставить отзыв
В избранноеВ сравнение
Артикул: SS8550DTA
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Discrete Semiconductors\Transistors\Bipolar Transistors - BJTTrans GP BJT PNP 25V 1.5A 1000mW 3-контактный TO-92 Fan-Fold
Дата загрузки | 20.02.2024 |
Вес и габариты | |
вес, г | 0.24 |
Информация о производителе | |
Производитель | ON Semiconductor*** |
Бренд | ON Semiconductor*** |
Основные | |
automotive | No |
collector- base voltage vcbo: | 40 V |
collector-emitter saturation voltage: | 280 mV |
collector- emitter voltage vceo max: | 25 V |
configuration | Single |
configuration: | Single |
continuous collector current: | -1.5 A |
dc collector/base gain hfe min: | 85 |
dc current gain hfe max: | 300 |
eccn (us) | EAR99 |
emitter- base voltage vebo: | 6 V |
eu rohs | Compliant |
factory pack quantity: factory pack quantity: | 2000 |
gain bandwidth product ft: | 200 MHz |
категория | Электронные компоненты/Транзисторы |
lead shape | Through Hole |
manufacturer: | onsemi |
material | Si |
maximum base emitter saturation voltage (v) | 1.2 80mA 800mA |
maximum collector base voltage | -40 V |
maximum collector base voltage (v) | 40 |
maximum collector cut-off current (na) | 100 |
maximum collector-emitter saturation voltage (v) | 0.5 80mA 800mA |
maximum collector emitter voltage | 25 V |
maximum collector-emitter voltage (v) | 25 |
maximum dc collector current | 1.5 A |
maximum dc collector current: | 1.5 A |
maximum dc collector current (a) | 01.05.2024 |
maximum emitter base voltage | -6 V |
maximum emitter base voltage (v) | 6 |
maximum operating frequency | 200 MHz |
maximum operating temperature | +150 °C |
maximum operating temperature: | +150 C |
maximum operating temperature (°c) | 150 |
maximum power dissipation | 1 W |
maximum power dissipation (mw) | 1000 |
maximum transition frequency (mhz) | 200(Typ) |
minimum dc current gain | 160 100mA 1V |
minimum operating temperature (°c) | -65 |
mounting | Through Hole |
mounting style: | Through Hole |
mounting type | Through Hole |
number of elements per chip | 1 |
package / case: | TO-92-3 Kinked Lead |
package type | TO-92 |
packaging | Fan-Fold |
packaging: | Ammo Pack |
партномер | 8004836086 |
part status | Active |
pcb changed | 3 |
pd - power dissipation: | 1 W |
pin count | 3 |
ppap | No |
product category | Bipolar Power |
product category: | Bipolar Transistors-BJT |
product type: | BJTs-Bipolar Transistors |
series: | SS8550 |
standard package name | TO-92 |
subcategory: | Transistors |
supplier package | TO-92 |
technology: | Si |
transistor configuration | Single |

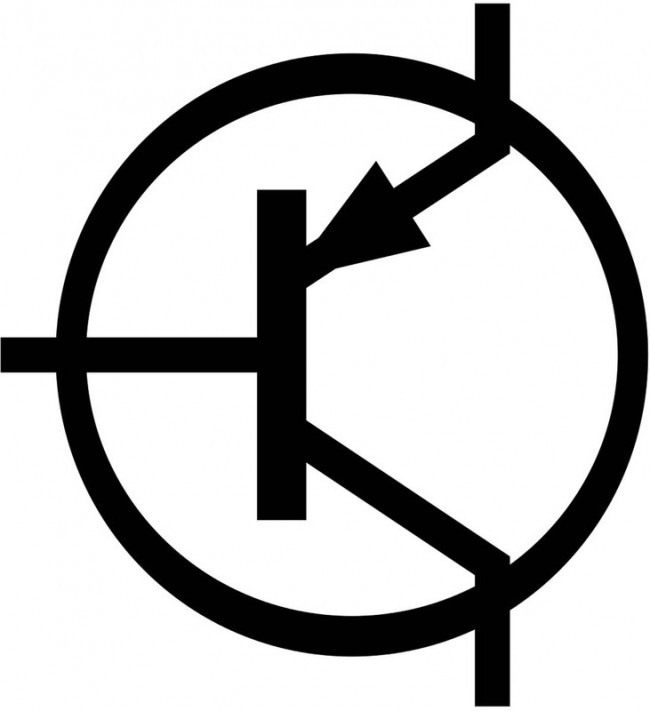

transistor polarity: | PNP |
transistor type | PNP |
type | PNP |
Время загрузки | 2:11:55 |
