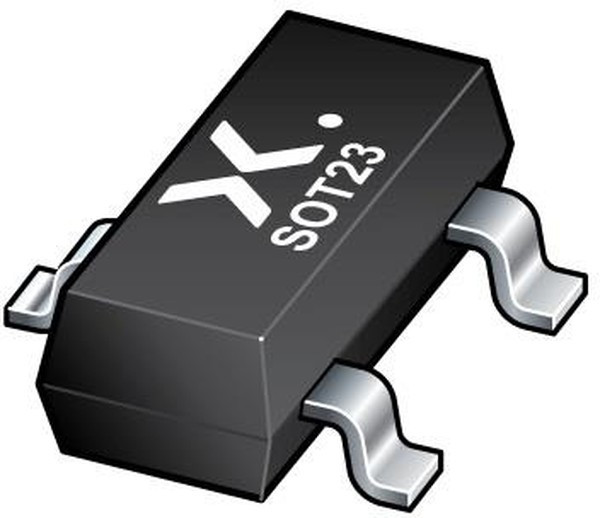

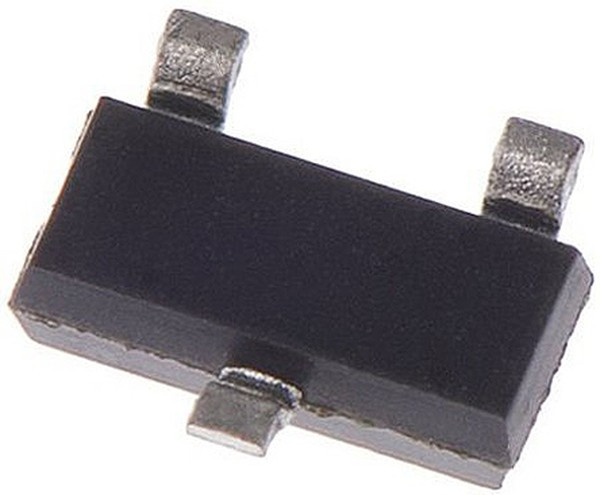

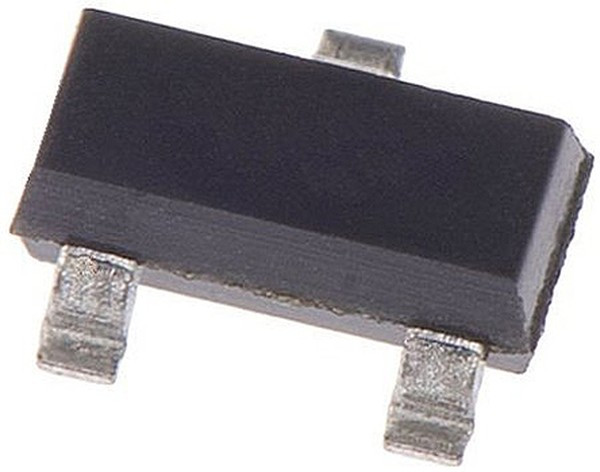

PBSS4041NT,215, Trans GP BJT NPN 60V 3.8A 1100mW Automotive AEC-Q101 3-Pin SOT-23 T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: PBSS4041NT,215
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Diodes, Transistors and Thyristors\Bipolar Transistors\GP BJTTrans GP BJT NPN 60V 3.8A 1100mW Automotive 3-Pin SOT-23 T/R
Дата загрузки | 21.02.2024 |
Вес и габариты | |
вес, г | 1 |
Информация о производителе | |
Производитель | Nexperia B.V. |
Бренд | Nexperia B.V. |
Основные | |
automotive | Yes |
collector- base voltage vcbo: | 80 V |
collector-emitter saturation voltage: | 200 mV, 250 mV |
collector- emitter voltage vceo max: | 60 V |
configuration | Single |
configuration: | Dual |
continuous collector current: | 1 A, -900 mA |
dc collector/base gain hfe min: | 30 |
dc current gain hfe max: | 250 at 1 mA, 5 V |
eccn (us) | EAR99 |
emitter- base voltage vebo: | 5 V |
eu rohs | Compliant |
factory pack quantity: factory pack quantity: | 3000 |
gain bandwidth product ft: | 220 MHz, 185 MHz |
категория | Электронные компоненты/Транзисторы |
lead shape | Gull-wing |
manufacturer: | Nexperia |
maximum base current (a) | 1 |
maximum base emitter saturation voltage (v) | 1.05@100mA@1A|1.2@300mA@3A|1.3@400mA@4A |
maximum collector base voltage | 60 V |
maximum collector base voltage (v) | 60 |
maximum collector cut-off current (na) | 100 |
maximum collector emitter voltage | 60 V |
maximum collector-emitter voltage (v) | 60 |
maximum dc collector current | 3.8 A |
maximum dc collector current: | 1 A, 900 mA |
maximum dc collector current (a) | 03.08.2024 |
maximum emitter base voltage | 5 V |
maximum emitter base voltage (v) | 5 |
maximum operating frequency | 100 MHz |
maximum operating temperature | +150 °C |
maximum operating temperature: | +150 C |
maximum operating temperature (°c) | 150 |
maximum power dissipation | 1.1 W |
maximum power dissipation (mw) | 1100 |
minimum dc current gain | 300@500mA@2V|250@1A@2V|120@2A@2V|30@4A@2V |
minimum operating temperature: | -65 C |
minimum operating temperature (°c) | -55 |
mounting | Surface Mount |
mounting style: | SMD/SMT |
mounting type | Surface Mount |
number of elements per chip | 1 |
operating junction temperature (°c) | 150 |
package / case: | TSOP-6 |
package type | SOT-23 |
packaging | Tape and Reel |
партномер | 8002272047 |
part # aliases: | 9,34063E+11 |
part status | Active |
pcb changed | 3 |
pd - power dissipation: | 290 mW, 420 mW |
pin count | 3 |
ppap | Unknown |
product category | Bipolar Small Signal |
product category: | Bipolar Transistors-BJT |
product type: | BJTs-Bipolar Transistors |
qualification: | AEC-Q101 |
standard package name | SOT |
subcategory: | Transistors |
supplier package | SOT-23 |
supplier temperature grade | Automotive |
technology: | Si |
transistor configuration | Single |
transistor polarity: | NPN, PNP |

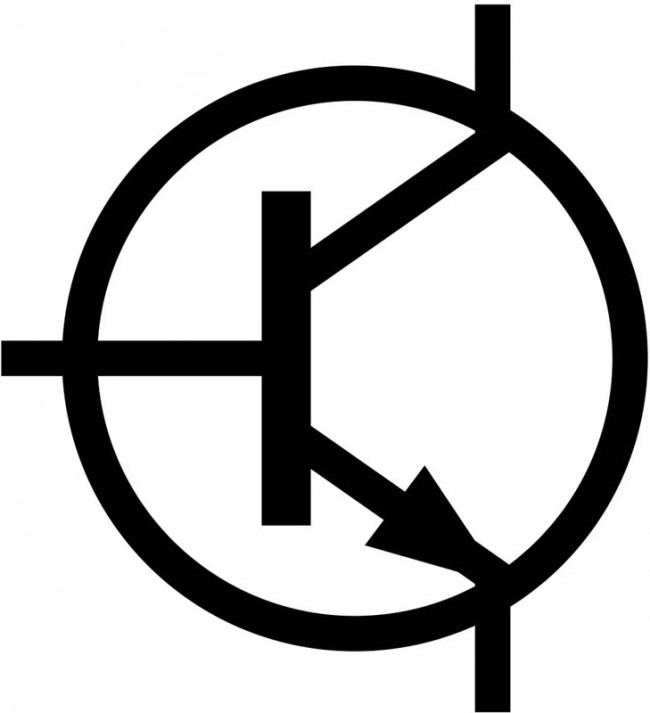

transistor type | NPN |
type | NPN |
Время загрузки | 15:13:47 |
