| Дата загрузки | 21.02.2024 |
| Вес и габариты | |
| вес, г | 0.311 |
| Информация о производителе | |
| Производитель | ON Semiconductor*** |
| Бренд | ON Semiconductor*** |
| Основные | |
| automotive | No |
| collector- base voltage vcbo | 60 V |
| collector- base voltage vcbo: | 60 V |
| collector-emitter saturation voltage: | 300 mV |
| collector- emitter voltage vceo max | 40 V |
| collector- emitter voltage vceo max: | 40 V |
| configuration | Quad |
| configuration: | Quad |
| continuous collector current | 0.2 A |
| continuous collector current: | 200 mA |
| dc collector/base gain hfe min | 75 |
| dc collector/base gain hfe min: | 75 |
| eccn (us) | ear99 |
| emitter- base voltage vebo | 6 V |
| emitter- base voltage vebo: | 6 V |
| eu rohs | compliant |
| factory pack quantity | 2500 |
| factory pack quantity: factory pack quantity: | 2500 |
| gain bandwidth product ft | 250 MHz |
| gain bandwidth product ft: | 250 MHz |
| height | 1.5 mm |
| категория | Электронные компоненты/Транзисторы |
| lead shape | Gull-wing |
| length | 10 mm |
| manufacturer | ON Semiconductor |
| manufacturer: | onsemi |
| maximum base emitter saturation voltage (v) | 0.85 1mA 10mA|0.95 5mA 50mA |
| maximum collector base voltage | 60 V |
| maximum collector base voltage (v) | 60 |
| maximum collector-emitter saturation voltage (v) | 0.2 1mA 10mA|0.3 5mA 50mA |
| maximum collector emitter voltage | 40 V |
| maximum collector-emitter voltage (v) | 40 |
| maximum dc collector current | 0.2 A |
| maximum dc collector current: | 200 mA |
| maximum dc collector current (a) | 0.2 |
| maximum emitter base voltage | 6 V |
| maximum emitter base voltage (v) | 6 |
| maximum operating frequency | 250 MHz |
| maximum operating temperature | +150 C |
| maximum operating temperature: | +150 C |
| maximum operating temperature (°c) | 150 |
| maximum power dissipation | 1 W |
| maximum power dissipation (mw) | 1000 |
| maximum transition frequency (mhz) | 250(Typ) |
| minimum operating temperature | -55 C |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | -55 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of elements per chip | 4 |
| operating junction temperature (°c) | -55 to 150 |

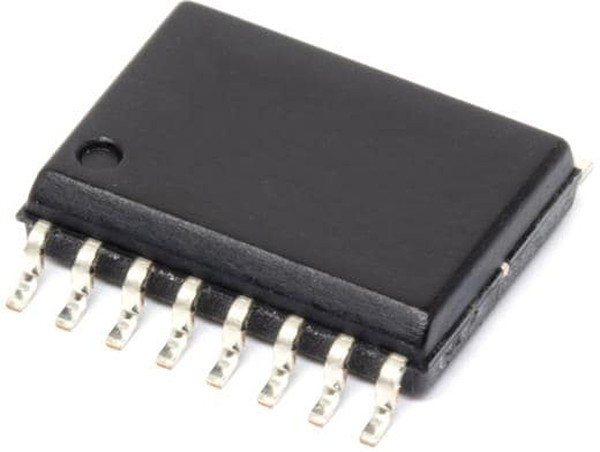

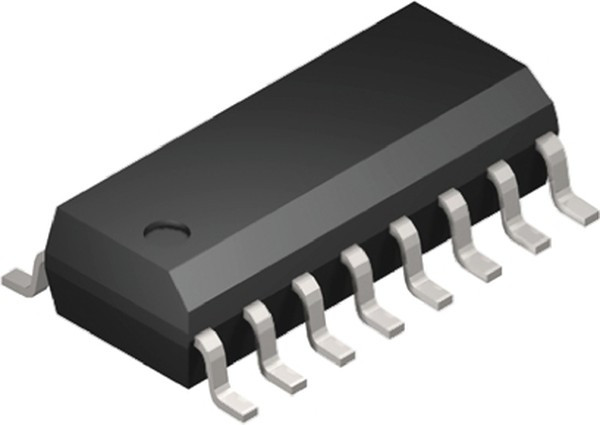

| package / case | SOIC-16 |
| package / case: | SOIC-16 |
| package type | SOIC |
| packaging | Reel |
| партномер | 8002973590 |
| part # aliases | MMPQ3904_NL |
| part # aliases: | MMPQ3904_NL |
| part status | active |
| pcb changed | 16 |
| pd - power dissipation | 1 W |
| pd - power dissipation: | 1 W |
| pin count | 16 |
| ppap | No |
| product category | Bipolar Transistors-BJT |
| product category: | Bipolar Transistors-BJT |
| product type: | BJTs-Bipolar Transistors |
| rohs | Details |
| series | MMPQ3904 |
| series: | MMPQ3904 |
| standard package name | SOP |
| subcategory: | Transistors |
| supplier package | SOIC N |
| technology: | Si |
| transistor configuration | Isolated |

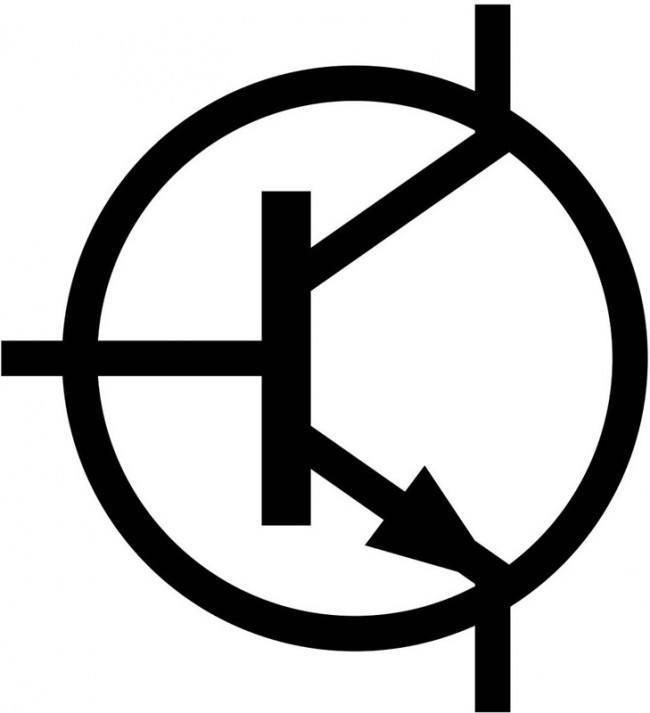

| transistor polarity | NPN |
| transistor polarity: | NPN |
| transistor type | NPN |
| type | NPN |
| unit weight | 0.005044 oz |
| Время загрузки | 0:58:49 |
| width | 4 mm |
