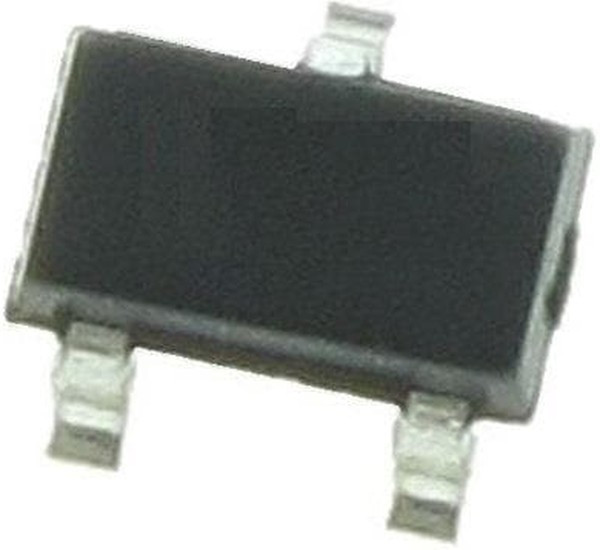

MMBTA56LT3G, Trans GP BJT PNP 80V 0.5A 300mW 3-Pin SOT-23 T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: MMBTA56LT3G
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Diodes, Transistors and Thyristors\Bipolar Transistors\GP BJTTrans GP BJT PNP 80V 0.5A 300mW 3-Pin SOT-23 T/R
| Дата загрузки | 20.02.2024 |
| Вес и габариты | |
| вес, г | 1 |
| Информация о производителе | |
| Производитель | ON Semiconductor*** |
| Бренд | ON Semiconductor*** |
| Основные | |
| automotive | No |
| collector- base voltage vcbo | -80 V |
| collector- base voltage vcbo: | -80 V |
| collector-emitter saturation voltage | -0.25 V |
| collector-emitter saturation voltage: | -250 mV |
| collector- emitter voltage vceo max | -80 V |
| collector- emitter voltage vceo max: | -80 V |
| configuration | Single |
| configuration: | Single |
| continuous collector current | -0.5 A |
| continuous collector current: | -0.5 A |
| eccn (us) | EAR99 |
| emitter- base voltage vebo | 4 V |
| emitter- base voltage vebo: | -4 V |
| eu rohs | Compliant |
| factory pack quantity | 10000 |
| factory pack quantity: factory pack quantity: | 10000 |
| gain bandwidth product ft | 50 MHz |
| gain bandwidth product ft: | 50 MHz |
| категория | Электронные компоненты/Транзисторы |
| lead shape | Gull-wing |
| manufacturer | ON Semiconductor |
| manufacturer: | onsemi |
| material | Si |
| maximum collector base voltage (v) | 80 |
| maximum collector cut-off current (na) | 100 |
| maximum collector-emitter saturation voltage (v) | 0.25@10mA@100mA |
| maximum collector-emitter voltage (v) | 80 |
| maximum dc collector current | 0.5 A |
| maximum dc collector current: | -500 mA |
| maximum dc collector current (a) | 0.5 |
| maximum emitter base voltage (v) | 4 |
| maximum operating temperature | +150 C |
| maximum operating temperature: | +150 C |
| maximum operating temperature (°c) | 150 |
| maximum power dissipation (mw) | 300 |
| maximum transition frequency (mhz) | 50(Min) |
| minimum dc current gain | 100@100mA@1V|100@10mA@1V |
| minimum operating temperature | -55 C |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | -55 |
| mounting | Surface Mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of elements per chip | 1 |
| operating junction temperature (°c) | -55 to 150 |
| package / case | SOT-23-3 |
| package/case: | SOT-23-3 |
| packaging | Tape and Reel |
| партномер | 8001145019 |
| part status | Active |
| pcb changed | 3 |
| pd - power dissipation | 225 mW |
| pd - power dissipation: | 225 mW |
| pin count | 3 |
| ppap | No |
| product category | Bipolar Small Signal |
| product category: | Bipolar Transistors-BJT |
| product type | BJTs-Bipolar Transistors |
| product type: | BJTs-Bipolar Transistors |
| series | MMBTA56L |
| series: | MMBTA56L |
| standard package name | SOT |
| subcategory | Transistors |
| subcategory: | Transistors |
| supplier package | SOT-23 |
| technology: | Si |
| transistor polarity | PNP |
| transistor polarity: | PNP |
| type | PNP |
| Время загрузки | 0:18:03 |
