| Дата загрузки | 22.02.2024 |
| Вес и габариты | |
| вес, г | 1 |
| Информация о производителе | |
| Производитель | DIODES INC. |
| Бренд | DIODES INC. |
| Основные | |
| automotive | No |
| collector- base voltage vcbo: | 180 V |
| collector-emitter breakdown voltage | 160V |
| collector-emitter saturation voltage: | 200 mV |
| collector- emitter voltage vceo max: | 160 V |
| configuration | Single |
| configuration: | Single |
| continuous collector current: | 600 mA |
| dc collector/base gain hfe min: | 80 |
| dc current gain hfe max: | 250 |
| eccn (us) | ear99 |
| emitter- base voltage vebo: | 6 V |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gain bandwidth product ft: | 300 MHz |
| hts | 8541.29.00.95 |
| категория | Электронные компоненты/Транзисторы |
| lead shape | Gull-wing |
| manufacturer: | Diodes Incorporated |
| maximum base emitter saturation voltage (v) | 1@1mA@10mA|1@5mA@50mA |
| maximum collector base voltage | 180 V |
| maximum collector base voltage (v) | 180 |
| maximum collector cut-off current (na) | 50 |
| maximum collector-emitter saturation voltage (v) | 0.15@1mA@10mA|0.2@5mA@50mA |
| maximum collector emitter voltage | 160 V |
| maximum collector-emitter voltage (v) | 160 |
| maximum dc collector current | 600mA |
| maximum dc collector current: | 600 mA |
| maximum dc collector current (a) | 0.6 |
| maximum emitter base voltage | 6 V |
| maximum emitter base voltage (v) | 6 |
| maximum operating frequency | 300 MHz |
| maximum operating temperature | +150 °C |
| maximum operating temperature: | +150 C |
| maximum operating temperature (°c) | 150 |
| maximum power dissipation | 300 mW |
| maximum power dissipation (mw) | 300 |
| maximum transition frequency (mhz) | 300 |
| military | No |
| minimum dc current gain | 80@1mA@5V|30@50mA@5V|80@10mA@5V |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | -55 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of elements per chip | 1 |

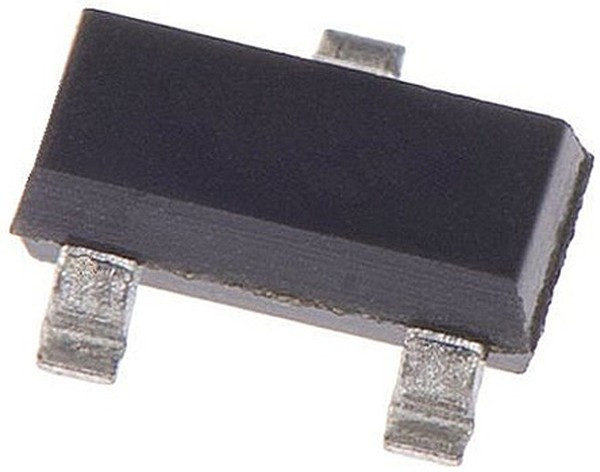

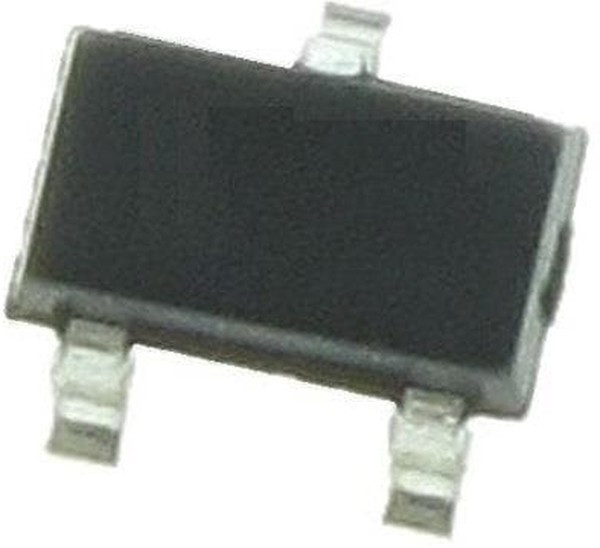

| package / case: | SOT-23-3 |
| package height | 0.98 |
| package length | 02.09.2024 |
| package type | SOT-23 |
| package width | 01.03.2024 |
| packaging | Tape and Reel |
| партномер | 8000999536 |
| part status | active |
| pcb changed | 3 |
| pd - power dissipation | 300mW |
| pd - power dissipation: | 300 mW |
| pin count | 3 |
| product category | Bipolar Small Signal |
| product category: | Bipolar Transistors-BJT |
| product type: | BJTs-Bipolar Transistors |
| series: | MMBT5551 |
| standard package name | SOT-23 |
| subcategory: | Transistors |
| supplier package | SOT-23 |
| supplier temperature grade | Automotive |
| technology: | Si |
| transistor configuration | Single |

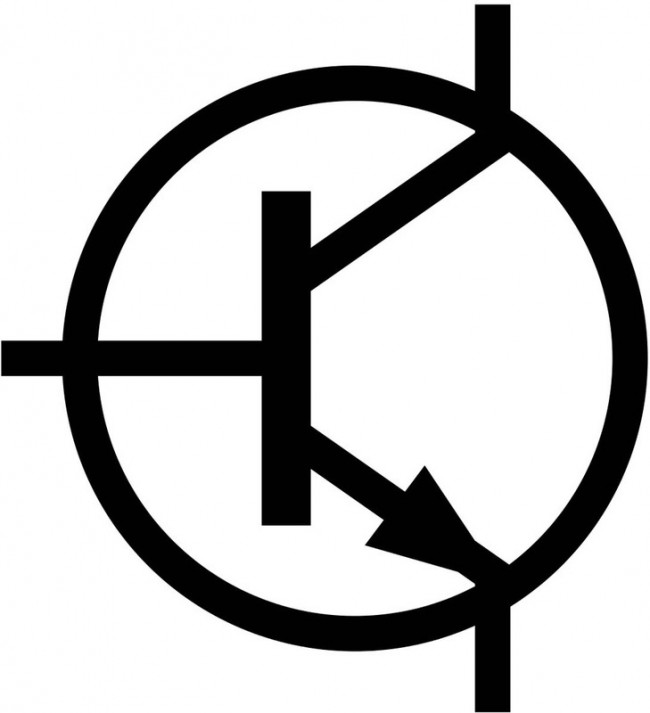

| transistor polarity: | NPN |
| transistor type | NPN |
| type | NPN |
| Время загрузки | 21:57:43 |
