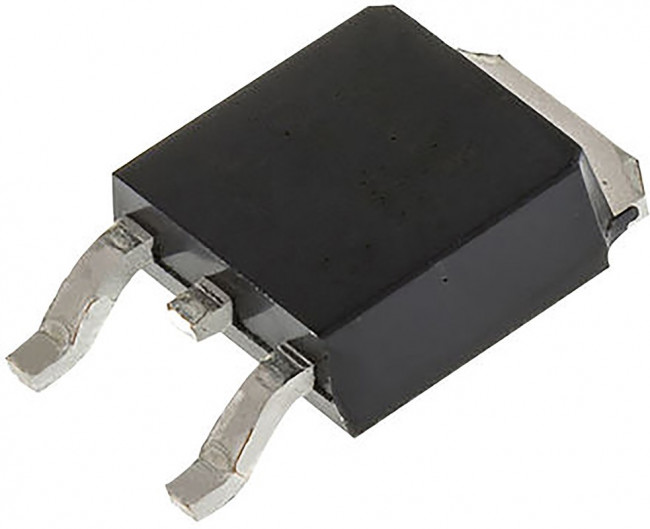

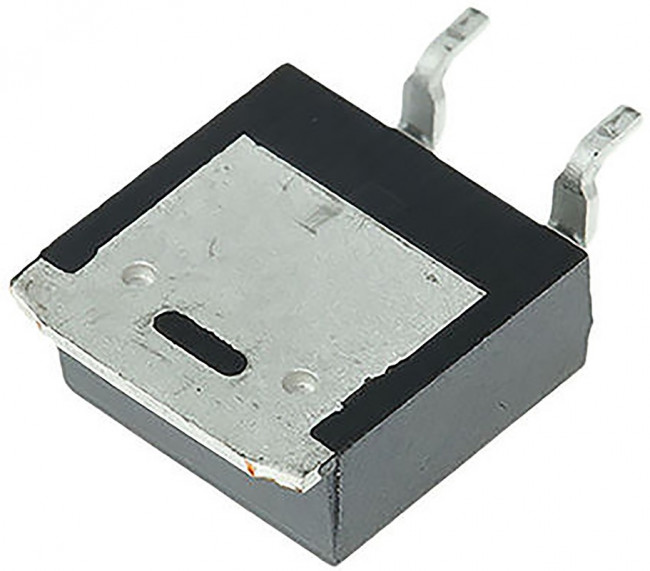

MJD243T4G, 100nA 100V 1.4W 40@200mA,1V 4A 40MHz 600mV@1A,100mA NPN -65°C~+150°C@(Tj) DPAK-3 BIpolar TransIstors - BJT ROHS
Оставить отзыв
В избранноеВ сравнение
Артикул: MJD243T4G
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Trans GP BJT NPN 100V 4A 1400mW 3-Pin(2+Tab) DPAK T/R
| Дата загрузки | 21.02.2024 |
| Вес и габариты | |
| вес, г | 0.47 |
| Информация о производителе | |
| Производитель | ON Semiconductor*** |
| Бренд | ON Semiconductor*** |
| Основные | |
| automotive | No |
| collector- base voltage vcbo: | 100 V |
| collector-emitter saturation voltage: | 600 mV |
| collector- emitter voltage vceo max: | 100 V |
| configuration | Single |
| configuration: | Single |
| continuous collector current: | 4 A |
| dc collector/base gain hfe min: | 40 |
| eccn (us) | EAR99 |
| emitter- base voltage vebo: | 7 V |
| eu rohs | Compliant with Exemption |
| factory pack quantity: factory pack quantity: | 2500 |
| gain bandwidth product ft: | 40 MHz |
| категория | Электронные компоненты/Транзисторы |
| lead shape | Gull-wing |
| manufacturer: | onsemi |
| material | Si |
| maximum base current (a) | 1 |
| maximum base emitter saturation voltage (v) | 1.8 200mA 2A |
| maximum collector base voltage | 100 V dc |
| maximum collector base voltage (v) | 100 |
| maximum collector cut-off current (na) | 100 |
| maximum collector-emitter saturation voltage (v) | 0.3 50mA 500mA|0.6 100mA 1A |
| maximum collector emitter voltage | 100 V |
| maximum collector-emitter voltage (v) | 100 |
| maximum dc collector current | 4 A |
| maximum dc collector current: | 4 A |
| maximum dc collector current (a) | 4 |
| maximum emitter base voltage | 7 V |
| maximum emitter base voltage (v) | 7 |
| maximum operating frequency | 10 MHz |
| maximum operating temperature | +150 °C |
| maximum operating temperature: | +150 C |
| maximum operating temperature (°c) | 150 |
| maximum power dissipation | 12.5 W |
| maximum power dissipation (mw) | 1400 |
| minimum dc current gain | 15 1A 1V|40 200mA 1V |
| minimum operating temperature: | -65 C |
| minimum operating temperature (°c) | -65 |
| mounting | Surface Mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of elements per chip | 1 |
| operating junction temperature (°c) | -65 to 150 |
| package/case: | TO-252-3 |
| package type | DPAK(TO-252) |
| packaging | Tape and Reel |
| партномер | 8017611573 |
| part status | Active |
| pcb changed | 2 |
| pd - power dissipation: | 12.5 W |
| pin count | 3 |
| ppap | No |
| product category | Bipolar Power |
| product category: | Bipolar Transistors-BJT |
| product type: | BJTs-Bipolar Transistors |
| series: | MJD243 |
| standard package name | TO-252 |
| subcategory: | Transistors |
| supplier package | DPAK |
| tab | Tab |
| technology: | Si |
| transistor configuration | Single |

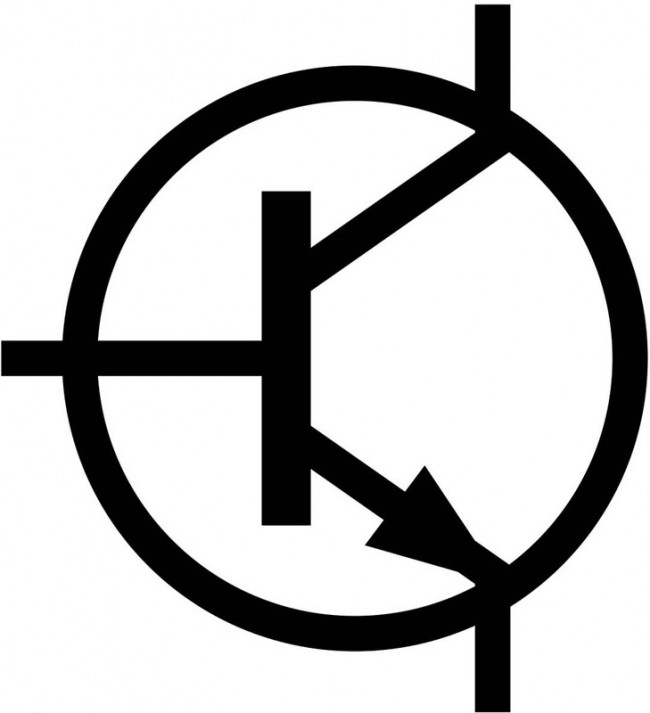

| transistor polarity: | NPN |
| transistor type | NPN |
| type | NPN |
| Время загрузки | 0:53:16 |
