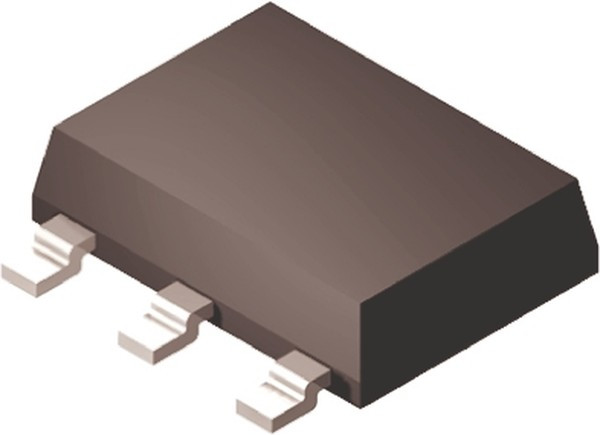

FZT560TA, Биполярный транзистор, PNP, 500 В, 0.15 А
Оставить отзыв
В избранноеВ сравнение
Артикул: FZT560TA
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Транзисторы / Биполярные транзисторы / Одиночные биполярные транзисторыБиполярный транзистор, PNP, 500 В, 0.15 А
| Дата загрузки | 22.02.2024 |
| Вес и габариты | |
| вес, г | 0.112 |
| Информация о производителе | |
| Производитель | DIODES INC. |
| Бренд | DIODES INC. |
| Основные | |
| Корпус | SOT-223 |
| automotive | No |
| base product number | FZT560 -> |
| collector- base voltage vcbo: | 500 V |
| collector-emitter saturation voltage: | 500 mV |
| collector- emitter voltage vceo max: | 500 V |
| configuration | Single Dual Collector |
| configuration: | Single |
| continuous collector current: | -150 mA |
| current - collector cutoff (max) | 100nA |
| current - collector (ic) (max) | 150mA |
| dc current gain (hfe) (min) @ ic, vce | 80 @ 50mA, 10V |
| eccn | EAR99 |
| eccn (us) | EAR99 |
| emitter- base voltage vebo: | 7 V |
| eu rohs | Compliant with Exemption |
| factory pack quantity: factory pack quantity: | 1000 |
| frequency - transition | 60MHz |
| gain bandwidth product ft: | 60 MHz |
| hts | 8541.29.00.95 |
| htsus | 8541.29.0075 |
| категория | Электронные компоненты/Транзисторы |
| lead shape | Gull-wing |
| manufacturer: | Diodes Incorporated |
| material | Si |
| maximum base emitter saturation voltage (v) | 0.9@10mA@50mA |
| maximum collector base voltage | 500 V |
| maximum collector base voltage (v) | 500 |
| maximum collector cut-off current (na) | 100 |
| maximum collector-emitter saturation voltage (v) | 0.5@10mA@50mA|0.2@2mA@20mA |
| maximum collector emitter voltage | -500 V |
| maximum collector-emitter voltage (v) | 500 |
| maximum dc collector current | -150 mA |
| maximum dc collector current: | 150 mA |
| maximum dc collector current (a) | 0.15 |
| maximum emitter base voltage | 5 V |
| maximum emitter base voltage (v) | 7 |
| maximum operating frequency | 60 MHz |
| maximum operating temperature | +150 °C |
| maximum operating temperature: | +150 C |
| maximum operating temperature (°c) | 150 |
| maximum power dissipation | 2 W |
| maximum power dissipation (mw) | 2000 |
| maximum transition frequency (mhz) | 60(Min) |
| military | No |
| minimum dc current gain | 80@50mA@10V|100@1mA@10V |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | -55 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Surface Mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of elements per chip | 1 |
| operating junction temperature (°c) | -55 to 150 |
| operating temperature | -55В°C ~ 150В°C (TJ) |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | TO-261-4, TO-261AA |
| package / case: | SOT-223-4 |
| package height | 01.06.2024 |
| package length | 06.05.2024 |
| package type | SOT-223(SC-73) |
| package width | 03.05.2024 |
| packaging | Tape and Reel |
| партномер | 8008606825 |
| part status | Active |
| pcb changed | 3 |
| pd - power dissipation: | 2 W |
| pin count | 4 |
| power - max | 2W |
| product category | Bipolar Power |
| product category: | Bipolar Transistors-BJT |
| product type: | BJTs-Bipolar Transistors |
| reach status | REACH Affected |
| rohs status | ROHS3 Compliant |
| series: | FZT560 |
| standard package name | SOT |
| subcategory: | Transistors |
| supplier device package | SOT-223 |
| supplier package | SOT-223 |
| tab | Tab |
| technology: | Si |
| transistor configuration | Single |
| transistor polarity: | PNP |
| transistor type | PNP |
| type | PNP |
| vce saturation (max) @ ib, ic | 500mV @ 10mA, 50mA |
| voltage - collector emitter breakdown (max) | 500V |
| Время загрузки | 22:07:09 |
