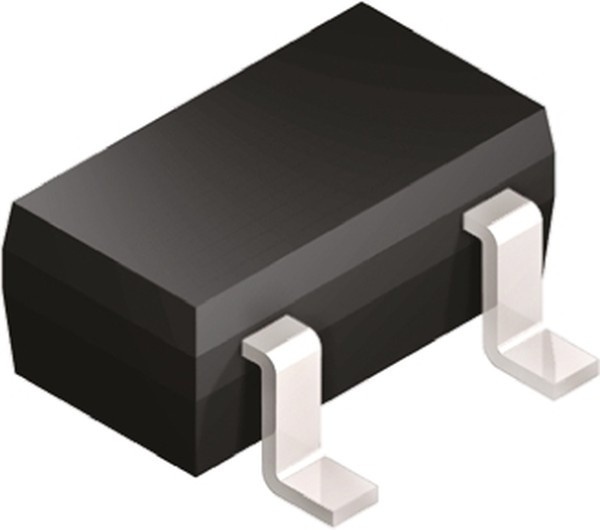

FMMT734TA
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Discrete Semiconductor Products\Transistors - Bipolar (BJT) - SingleБиполярный (BJT) транзистор PNP - Darlington 100V 800mA 140MHz 625mW Surface Mount SOT-23-3
| Дата загрузки | 23.02.2024 |
| Вес и габариты | |
| вес, г | 0.32 |
| Информация о производителе | |
| Производитель | DIODES INC. |
| Бренд | DIODES INC. |
| Основные | |
| automotive | No |
| base product number | FMMT734 -> |
| collector- base voltage vcbo | 100 V |
| collector- emitter voltage vceo max | 100 V |
| configuration | Single |
| continuous collector current | -0.8 A |
| current - collector cutoff (max) | 200nA |
| current - collector (ic) (max) | 800mA |
| dc current gain hfe max | 20000 |
| dc current gain (hfe) (min) @ ic, vce | 20000 @ 100mA, 5V |
| eccn | EAR99 |
| eccn (us) | EAR99 |
| emitter- base voltage vebo | 12 V |
| eu rohs | Compliant |
| factory pack quantity | 3000 |
| frequency - transition | 140MHz |
| htsus | 8541.21.0075 |
| категория | Электронные компоненты/Транзисторы |
| lead shape | Gull-wing |
| manufacturer | Diodes Incorporated |
| maximum base emitter saturation voltage | -1.75 V |
| maximum base emitter saturation voltage (v) | 1.75 5mA 1A |
| maximum collector base voltage | -100 V |
| maximum collector base voltage (v) | 100 |
| maximum collector cut-off current | -0.00001mA |
| maximum collector cut-off current (ua) | 0.01 |
| maximum collector emitter saturation voltage | -0.75 V |
| maximum collector emitter voltage | 100 V |
| maximum collector-emitter voltage (v) | 100 |
| maximum continuous collector current | -800 mA |
| maximum continuous dc collector current (a) | 0.8 |
| maximum dc collector current | 0.8 A |
| maximum emitter base voltage (v) | 12 |
| maximum operating temperature | +150 °C |
| maximum operating temperature (°c) | 150 |
| maximum power dissipation | 625 mW |
| maximum power dissipation (mw) | 625 |
| minimum dc current gain | 5000 2A 5V|15000 1A 5V|20000 100mA 5V |
| minimum operating temperature | -55 °C |
| minimum operating temperature (°c) | -55 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Surface Mount |
| mounting style | SMD/SMT |
| mounting type | Surface Mount |
| number of elements per chip | 1 |
| operating temperature | -55В°C ~ 150В°C (TJ) |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | TO-236-3, SC-59, SOT-23-3 |
| package type | SOT-23 |
| packaging | Tape and Reel |
| партномер | 8007290785 |
| part status | Active |
| pcb changed | 3 |
| pd - power dissipation | 625 mW |
| pin count | 3 |
| power - max | 625mW |
| ppap | No |
| product category | Darlington Transistors |
| product type | Darlington Transistors |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series | FMMT73 |
| standard package name | SOT-23 |
| subcategory | Transistors |
| supplier device package | SOT-23-3 |
| supplier package | SOT-23 |
| transistor configuration | Single |
| transistor polarity | PNP |
| transistor type | PNP - Darlington |
| type | PNP |
| typical current gain bandwidth (mhz) | 140 |
| vce saturation (max) @ ib, ic | 1.05V @ 5mA, 1A |
| voltage - collector emitter breakdown (max) | 100V |
| Время загрузки | 0:08:23 |
| width | 1.4mm |
