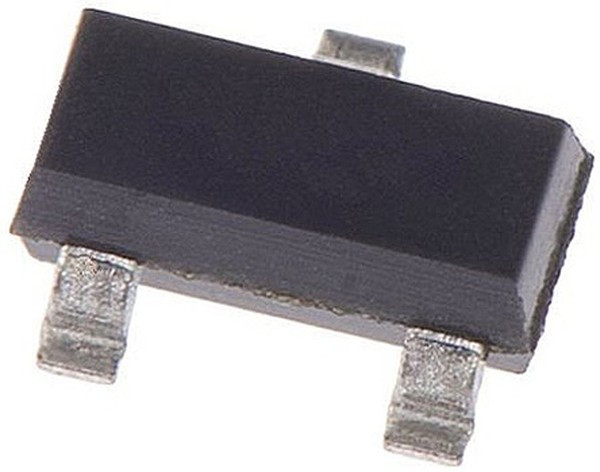

FMMT618TA, Bipolar Transistors - BJT NPN SuperSOT
Оставить отзыв
В избранноеВ сравнение
Артикул: FMMT618TA
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Discrete Semiconductors\Transistors\Bipolar Transistors - BJTTrans GP BJT NPN 20V 2.5A 625mW 3-Pin SOT-23 T/R
Дата загрузки | 23.02.2024 |
Вес и габариты | |
вес, г | 0.197 |
Информация о производителе | |
Производитель | DIODES INC. |
Бренд | DIODES INC. |
Основные | |
automotive | No |
collector- base voltage vcbo: | 20 V |
collector-emitter saturation voltage: | 130 mV |
collector- emitter voltage vceo max: | 20 V |
configuration | Single |
configuration: | Single |
continuous collector current: | 2.5 A |
eccn (us) | EAR99 |
emitter- base voltage vebo: | 7 V |
eu rohs | Compliant |
factory pack quantity: factory pack quantity: | 3000 |
gain bandwidth product ft: | 140 MHz |
категория | Электронные компоненты/Транзисторы |
lead shape | Gull-wing |
manufacturer: | Diodes Incorporated |
material | Si |
maximum base emitter saturation voltage (v) | 1 50mA 2.5A |
maximum collector base voltage | 20 V |
maximum collector base voltage (v) | 20 |
maximum collector cut-off current (na) | 100 |
maximum collector-emitter saturation voltage (v) | 0.015 10mA 0.1A|0.15 10mA 1A|0.2 50mA 2.5A |
maximum collector emitter voltage | 20 V |
maximum collector-emitter voltage (v) | 20 |
maximum dc collector current | 2.5 A |
maximum dc collector current: | 2.5 A |
maximum dc collector current (a) | 02.05.2024 |
maximum emitter base voltage | 5 V |
maximum emitter base voltage (v) | 5 |
maximum operating frequency | 140 MHz |
maximum operating temperature | +150 °C |
maximum operating temperature: | +150 C |
maximum operating temperature (°c) | 150 |
maximum power dissipation | 625 mW |
maximum power dissipation (mw) | 625 |
maximum transition frequency (mhz) | 140(Typ) |
minimum dc current gain | 200 10mA 2V|300 200mA 2V|200 2A 2V|100 6A 2V |
minimum operating temperature: | -55 C |
minimum operating temperature (°c) | -55 |
mounting | Surface Mount |
mounting style: | SMD/SMT |
mounting type | Surface Mount |
number of elements per chip | 1 |
package / case: | SOT-23-3 |
package type | SOT-23 |
packaging | Tape and Reel |
партномер | 8004841685 |
part status | Active |
pcb changed | 3 |
pd - power dissipation: | 625 mW |
pin count | 3 |
ppap | No |
product category | Bipolar Small Signal |
product category: | Bipolar Transistors-BJT |
product type: | BJTs-Bipolar Transistors |
series: | FMMT618 |
standard package name | SOT |
subcategory: | Transistors |
supplier package | SOT-23 |
supplier temperature grade | Automotive |
technology: | Si |
transistor configuration | Single |
transistor polarity: | NPN |
transistor type | NPN |
type | NPN |
Время загрузки | 0:07:13 |
