| Дата загрузки | 18.02.2024 |
| Вес и габариты | |
| вес, г | 7.67 |
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Бренд | STMicroelectronics |
| Основные | |
| automotive | Unknown |

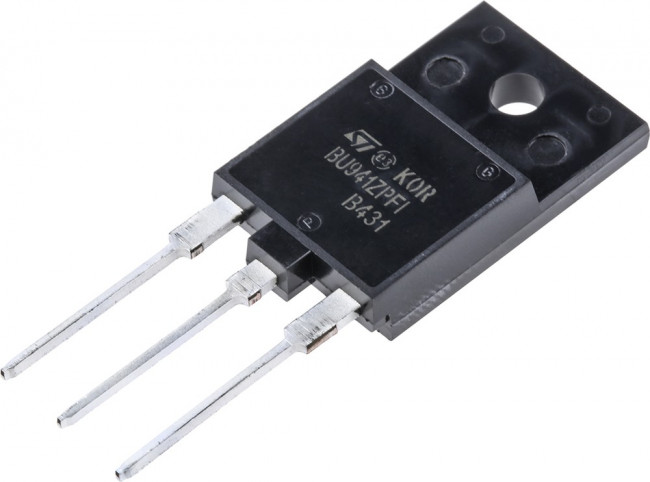

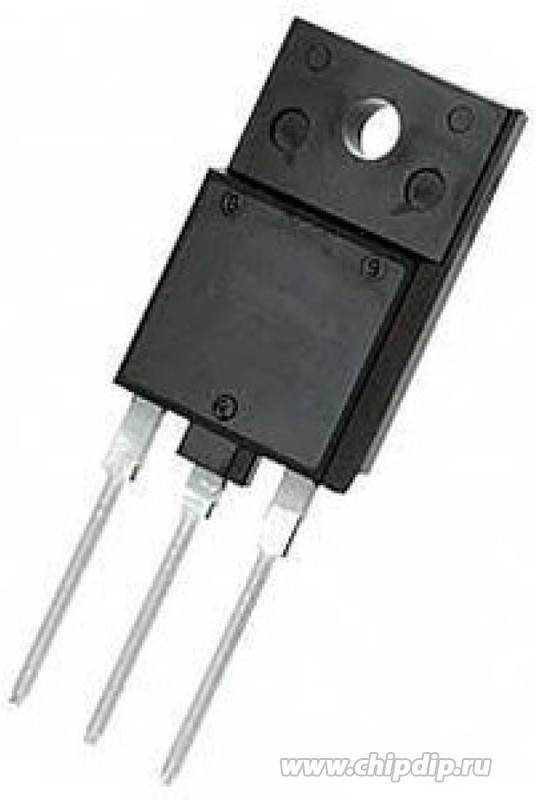

| base product number | BU941 -> |
| collector- emitter voltage vceo max | 350 V |
| configuration | Single |
| continuous collector current | 15 A |
| current - collector cutoff (max) | 100ВµA |
| current - collector (ic) (max) | 15A |
| dc collector/base gain hfe min | 300 |
| dc current gain (hfe) (min) @ ic, vce | 300 @ 5A, 10V |
| eccn | EAR99 |
| eccn (us) | EAR99 |
| emitter- base voltage vebo | 5 V |
| eu rohs | Compliant with Exemption |
| factory pack quantity | 300 |
| height | 15.2 mm |
| htsus | 8541.29.0095 |
| категория | Электронные компоненты/Транзисторы |
| кол-во в упаковке | 30 |
| length | 15.7 mm |
| manufacturer | STMicroelectronics |
| maximum base emitter saturation voltage | 2.7 V |
| maximum base emitter saturation voltage (v) | 2.2@100mA@8A|2.5@250mA@10A|2.7@300mA@12A |
| maximum collector emitter saturation voltage | 2 V |
| maximum collector-emitter saturation voltage (v) | 1.8@100mA@8A|1.8@250mA@10A|2@300mA@12A |
| maximum collector emitter voltage | 350 V |
| maximum collector-emitter voltage (v) | 350 |
| maximum continuous collector current | 15 A |
| maximum continuous dc collector current (a) | 15 |
| maximum dc collector current | 15 A |
| maximum emitter base voltage | 5 V |
| maximum emitter base voltage (v) | 5 |
| maximum operating temperature | +150 C |
| maximum operating temperature (°c) | 175 |
| maximum power dissipation (mw) | 65000 |
| minimum dc current gain | 300@5A@10V |
| minimum operating temperature | -65 °C |
| minimum operating temperature (°c) | -65 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style | Through Hole |
| mounting type | Through Hole |
| number of elements per chip | 1 |
| operating temperature | 175В°C (TJ) |
| other related documents | http://www.st.com/web/catalog/sense_power/FM100/CL |
| package | Tube |
| package / case | TO-3PF |
| package type | TO-3PF |
| packaging | Tube |
| партномер | 8002887605 |
| part status | Obsolete |
| pcb changed | 3 |
| pd - power dissipation | 65 W |
| pin count | 3 |
| power - max | 65W |
| ppap | Unknown |
| process technology | Bipolar |
| product category | Darlington Transistors |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | Darlingtons |
| standard package name | TO |
| supplier device package | TO-3PF |
| supplier package | TO-3PF |
| tab | Tab |
| transistor configuration | Single |
| transistor polarity | NPN |
| transistor type | NPN - Darlington |
| type | NPN |
| vce saturation (max) @ ib, ic | 2V @ 300mA, 12A |
| voltage - collector emitter breakdown (max) | 350V |
| Время загрузки | 14:03:48 |
| width | 5.7 mm |
