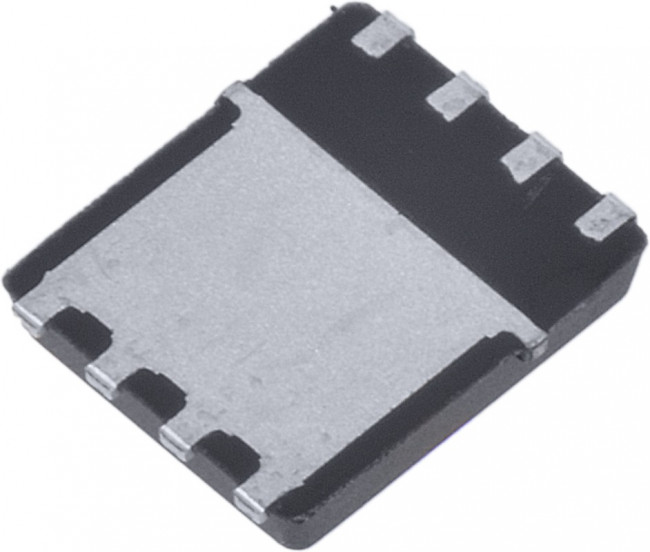

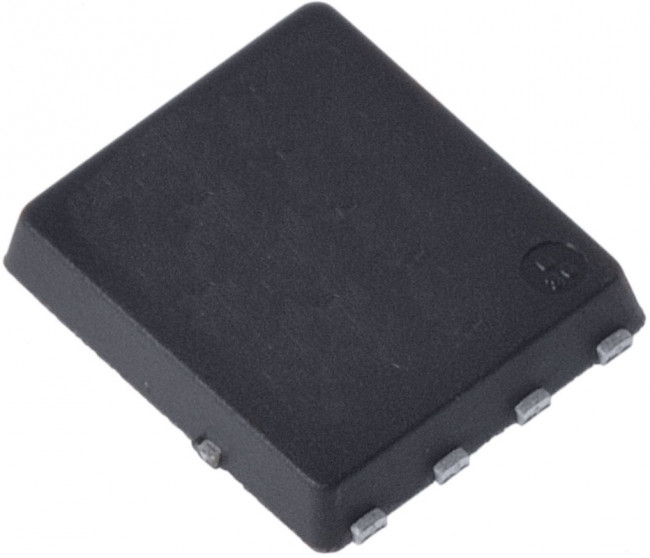

BSC077N12NS3GATMA1, Trans MOSFET N-CH 120V 13.4A Automotive 8-Pin TDSON EP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: BSC077N12NS3GATMA1
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductor - Discrete > Transistors > FET - MOSFETInfineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families.
| Дата загрузки | 22.02.2024 |
| Вес и габариты | |
| вес, г | 1 |
| Информация о производителе | |
| Производитель | INFINEON TECHNOLOGIES AG. |
| Бренд | INFINEON TECHNOLOGIES AG. |
| Основные | |
| channel mode | Enhancement |
| channel mode: | Enhancement |
| channel type | N |
| configuration | 1 N-Channel |
| configuration: | Single |
| factory pack quantity | 5000 |
| factory pack quantity: factory pack quantity: | 5000 |
| fall time | 7 ns |
| fall time: | 7 ns |
| forward transconductance - min | 40 S |
| forward transconductance - min: | 40 S |
| height | 1.27 mm |
| id - continuous drain current | 98 A |
| id - continuous drain current: | 98 A |
| категория | Электронные компоненты/Транзисторы |
| length | 5.9 mm |
| manufacturer | Infineon |
| manufacturer: | Infineon |
| maximum continuous drain current | 98 A |
| maximum drain source resistance | 7.7 mΩ |
| maximum drain source voltage | 120 V |
| maximum gate source voltage | -20 V, +20 V |
| maximum gate threshold voltage | 4V |
| maximum operating temperature | +150 C |
| maximum operating temperature: | +150 C |
| maximum power dissipation | 139 W |
| minimum gate threshold voltage | 2V |
| minimum operating temperature | -55 C |
| minimum operating temperature: | -55 C |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of elements per chip | 1 |
| package / case | TDSON-8 |
| package / case: | TDSON-8 |
| package type | TDSON |
| packaging | Reel |
| партномер | 8021374716 |
| part # aliases | BSC077N12NS3 BSC077N12NS3GXT G SP000652750 |
| part # aliases: | BSC077N12NS3 G SP000652750 |
| pd - power dissipation | 139 W |
| pd - power dissipation: | 139 W |
| pin count | 8 |
| product category | MOSFET |
| product category: | MOSFET |
| product type: | MOSFET |
| qg - gate charge | 88 nC |
| qg - gate charge: | 66 nC |
| rds on - drain-source resistance | 6.6 mOhms |
| rds on - drain-source resistance: | 7.7 mOhms |
| rise time | 8 ns |
| rise time: | 8 ns |
| rohs | Details |
| series | BSC077N12 |
| series: | OptiMOS 3 |
| subcategory: | MOSFETs |
| technology | Si |
| technology: | Si |
| tradename | OptiMOS |
| tradename: | OptiMOS |
| transistor configuration | Single |
| transistor polarity | N-Channel |
| transistor polarity: | N-Channel |
| transistor type | 1 N-Channel |
| transistor type: | 1 N-Channel |
| typical gate charge @ vgs | 66 nC @ 10 V |
| typical turn-off delay time | 26 ns |
| typical turn-off delay time: | 26 ns |
| typical turn-on delay time | 15 ns |
| typical turn-on delay time: | 15 ns |
| vds - drain-source breakdown voltage | 120 V |
| vds - drain-source breakdown voltage: | 120 V |
| vgs - gate-source voltage | 20 V |
| vgs - gate-source voltage: | -20 V, +20 V |
| vgs th - gate-source threshold voltage | 2 V |
| vgs th - gate-source threshold voltage: | 2 V |
| Время загрузки | 3:15:54 |
| width | 5.15 mm |
