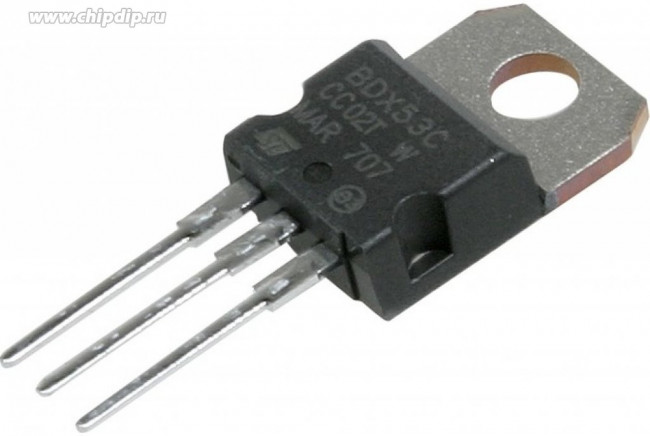

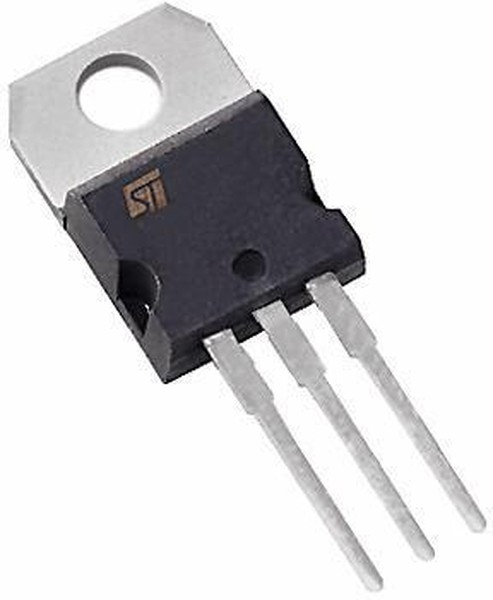

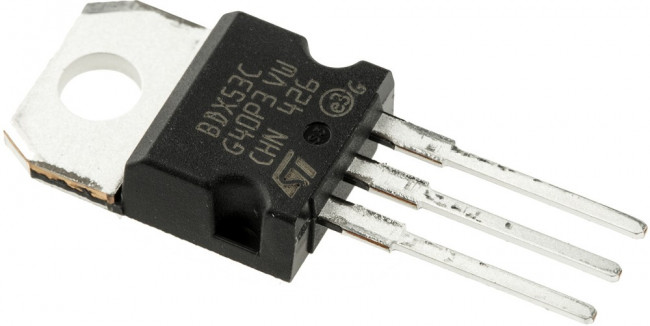

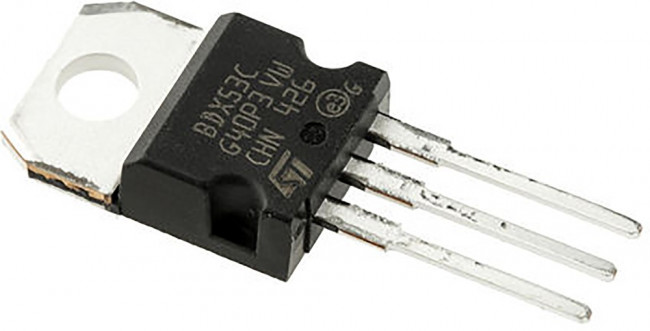

BDX53C, Trans Darlington NPN 100V 8A 60000mW 3-Pin(3+Tab) TO-220AB Tube
Оставить отзыв
В избранноеВ сравнение
Артикул: BDX53C
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductor - Discrete > Transistors > BJT - DarlingtonБиполярный (BJT) транзистор NPN - Darlington 100V 8A 60W Through Hole TO-220AB
| Дата загрузки | 18.02.2024 |
| Вес и габариты | |
| вес, г | 1 |
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Бренд | STMicroelectronics |
| Основные | |
| base product number | BDX53 -> |
| collector- base voltage vcbo | 100 V |
| collector- base voltage vcbo: | 100 V |
| collector- emitter voltage vceo max | 100 V |
| collector- emitter voltage vceo max: | 100 V |
| configuration | Single |
| configuration: | Single |
| continuous collector current | 8 A |
| continuous collector current: | 8 A |
| current - collector cutoff (max) | 500ВµA |
| current - collector (ic) (max) | 8A |
| dc collector/base gain hfe min | 750 |
| dc collector/base gain hfe min: | 750 |
| dc current gain (hfe) (min) @ ic, vce | 750 @ 3A, 3V |
| eccn | EAR99 |
| emitter- base voltage vebo | 5 V |
| emitter- base voltage vebo: | 5 V |
| factory pack quantity | 1000 |
| factory pack quantity: factory pack quantity: | 1000 |
| height | 9.15 mm |
| htsus | 8541.29.0095 |
| категория | Электронные компоненты/Транзисторы |
| кол-во в упаковке | 50 |
| length | 10.4 mm |
| manufacturer | STMicroelectronics |
| manufacturer: | STMicroelectronics |
| maximum base emitter saturation voltage | 2.5 V |
| maximum collector base voltage | 100 V |
| maximum collector cut-off current | 200 uA |
| maximum collector emitter saturation voltage | 2 V |
| maximum collector emitter voltage | 100 V |
| maximum continuous collector current | 8 A |
| maximum dc collector current | 8 A |
| maximum dc collector current: | 8 A |
| maximum emitter base voltage | 5 V |
| maximum operating temperature | +150 C |
| maximum operating temperature: | +150 C |
| minimum dc current gain | 750 |
| minimum operating temperature | -65 °C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of elements per chip | 1 |
| operating temperature | 150В°C (TJ) |
| other related documents | http://www.st.com/web/catalog/sense_power/FM100/CL |
| package | Tube |
| package / case | TO-220-3 |
| package/case: | TO-220-3 |
| package type | TO-220 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8003194884 |
| pd - power dissipation | 60 W |
| pd - power dissipation: | 60 W |
| pin count | 3 |
| power - max | 60W |
| product category | Darlington Transistors |
| product category: | Darlington Transistors |
| product type: | Darlington Transistors |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | Darlingtons |
| series: | BDX53C |
| subcategory: | Transistors |
| supplier device package | TO-220AB |
| transistor configuration | Single |
| transistor polarity | NPN |
| transistor polarity: | NPN |
| transistor type | NPN - Darlington |
| vce saturation (max) @ ib, ic | 2V @ 12mA, 3A |
| voltage - collector emitter breakdown (max) | 100V |
| Время загрузки | 13:57:18 |
| width | 4.6 mm |
