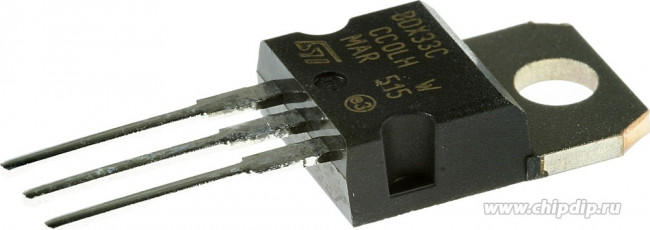

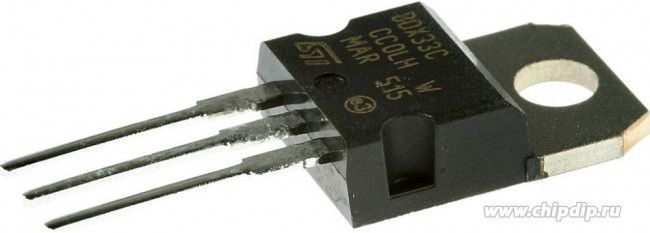

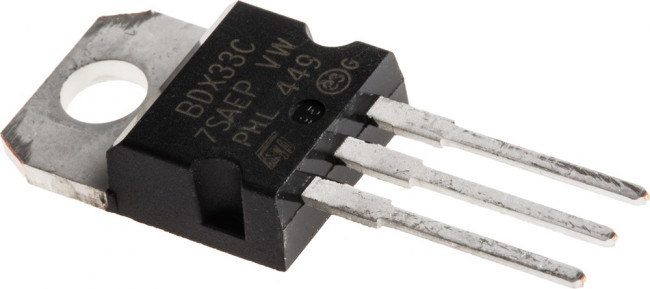

BDX33C, Darlington Transistors Silicon Pwr Trnsistr
Оставить отзыв
В избранноеВ сравнение
Артикул: BDX33C
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Discrete Semiconductors\Transistors\Darlington TransistorsБиполярный (BJT) транзистор NPN - Darlington 100V 10A 70W Through Hole TO-220AB
Дата загрузки | 18.02.2024 |
Вес и габариты | |
вес, г | 02.03.2024 |
Информация о производителе | |
Производитель | STMicroelectronics |
Бренд | STMicroelectronics |
Основные | |
base product number | BDX33 -> |
collector- base voltage vcbo | 100 V |
collector- base voltage vcbo: | 100 V |
collector- emitter voltage vceo max | 100 V |
collector- emitter voltage vceo max: | 100 V |
configuration | Single |
configuration: | Single |
current - collector cutoff (max) | 500ВµA |
current - collector (ic) (max) | 10A |
dc collector/base gain hfe min | 750 |
dc collector/base gain hfe min: | 750 |
dc current gain (hfe) (min) @ ic, vce | 750 @ 3A, 3V |
eccn | EAR99 |
factory pack quantity | 1000 |
factory pack quantity: factory pack quantity: | 1000 |
height | 9.15 mm |
htsus | 8541.29.0095 |
категория | Электронные компоненты/Транзисторы |
кол-во в упаковке | 50 |
length | 10.4 mm |
manufacturer | STMicroelectronics |
manufacturer: | STMicroelectronics |
maximum collector base voltage | 100 V |
maximum collector cut-off current | 200 uA |
maximum collector emitter saturation voltage | 2.5 V |
maximum collector emitter voltage | 100 V |
maximum continuous collector current | 10 A |
maximum dc collector current | 10 A |
maximum dc collector current: | 10 A |
maximum operating temperature | +150 C |
maximum operating temperature: | +150 C |
minimum dc current gain | 750 |
minimum operating temperature | -65 °C |
moisture sensitivity level (msl) | 1 (Unlimited) |
mounting style | Through Hole |
mounting style: | Through Hole |
mounting type | Through Hole |
number of elements per chip | 1 |
operating temperature | 150В°C (TJ) |
other related documents | http://www.st.com/web/catalog/sense_power/FM100/CL |
package | Tube |
package / case | TO-220-3 |
package / case: | TO-220-3 |
package type | TO-220 |
packaging | Tube |
packaging: | Tube |
партномер | 8004825025 |
pin count | 3 |
power - max | 70W |
product category | Darlington Transistors |
product category: | Darlington Transistors |
product type: | Darlington Transistors |
reach status | REACH Unaffected |
rohs | Details |
rohs status | ROHS3 Compliant |
series | Darlingtons |
series: | BDX33C |
subcategory: | Transistors |
supplier device package | TO-220AB |
transistor configuration | Single |
transistor polarity | NPN |
transistor polarity: | NPN |
transistor type | NPN - Darlington |
vce saturation (max) @ ib, ic | 2.5V @ 6mA, 3A |
voltage - collector emitter breakdown (max) | 100V |
Время загрузки | 14:00:49 |
width | 4.6 mm |
