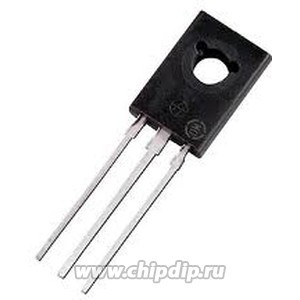

BD681G, Darlington Transistors 4A 100V Bipolar Power NPN
Оставить отзыв
В избранноеВ сравнение
Артикул: BD681G
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Discrete Semiconductors\Transistors\Darlington TransistorsTrans Darlington NPN 100V 4A 40000mW 3-контактный (3 Tab) TO-225 Box
Дата загрузки | 21.02.2024 |
Вес и габариты | |
вес, г | 0.68 |
Информация о производителе | |
Производитель | ON Semiconductor*** |
Бренд | ON Semiconductor*** |
Основные | |
automotive | No |
collector- base voltage vcbo | 100 V |
collector- base voltage vcbo: | 100 V |
collector- emitter voltage vceo max | 100 V |
collector- emitter voltage vceo max: | 100 V |
configuration | Single |
configuration: | Single |
dc collector/base gain hfe min | 750 |
dc collector/base gain hfe min: | 750 |
eccn (us) | EAR99 |
emitter- base voltage vebo | 5 V |
emitter- base voltage vebo: | 5 V |
eu rohs | Compliant |
factory pack quantity | 500 |
factory pack quantity: factory pack quantity: | 500 |
height | 11.04 mm |
категория | Электронные компоненты/Транзисторы |
lead shape | Through Hole |
length | 7.74 mm |
manufacturer | ON Semiconductor |
manufacturer: | onsemi |
maximum collector base voltage (v) | 100 |
maximum collector cut-off current | 200 uA |
maximum collector cut-off current (ua) | 200 |
maximum collector-emitter saturation voltage (v) | 2.5 30mA 1.5A |
maximum collector-emitter voltage (v) | 100 |
maximum continuous dc collector current (a) | 4 |
maximum dc collector current | 4 A |
maximum dc collector current: | 4 A |
maximum emitter base voltage (v) | 5 |
maximum operating temperature | +150 C |
maximum operating temperature: | +150 C |
maximum operating temperature (°c) | 150 |
maximum power dissipation (mw) | 40000 |
minimum dc current gain | 750 1.5A 3V |
minimum operating temperature | -55 C |
minimum operating temperature: | -55 C |
minimum operating temperature (°c) | -55 |
mounting | Through Hole |
mounting style | Through Hole |
mounting style: | Through Hole |
number of elements per chip | 1 |
package / case | TO-225AA |
package / case: | TO-225AA |
packaging | Box |
packaging: | Bulk |
партномер | 8005368702 |
part status | Active |
pcb changed | 3 |
pin count | 3 |
ppap | No |
product category | Darlington Transistors |
product category: | Darlington Transistors |
product type: | Darlington Transistors |
rohs | Details |
series | BD681 |
series: | BD681 |
subcategory: | Transistors |
supplier package | TO-225 |
tab | Tab |
transistor polarity | NPN |
transistor polarity: | NPN |
type | NPN |
Время загрузки | 0:56:56 |
width | 2.66 mm |
