| Дата загрузки | 18.02.2024 |
| Вес и габариты | |
| вес, г | 0.06 |
| Высота | 10.8мм |
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Бренд | STMicroelectronics |
| Основные | |

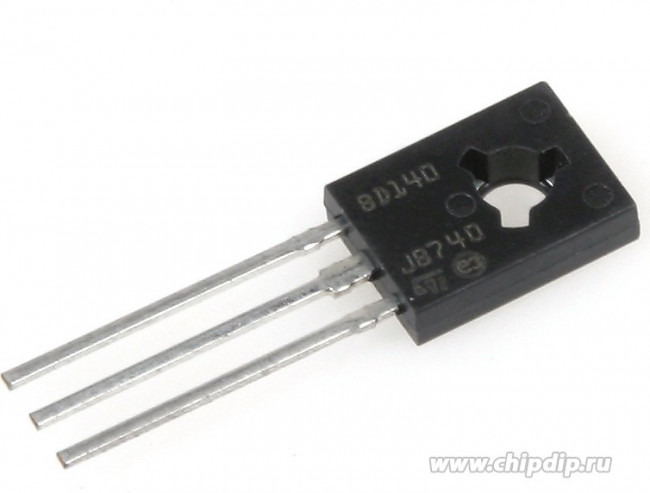

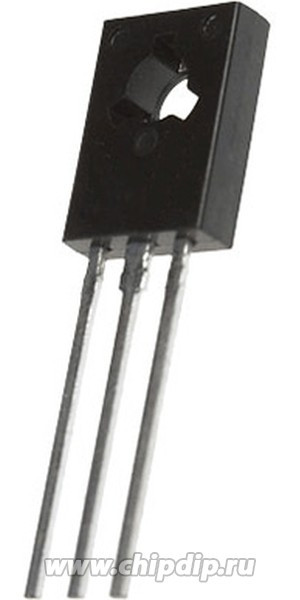

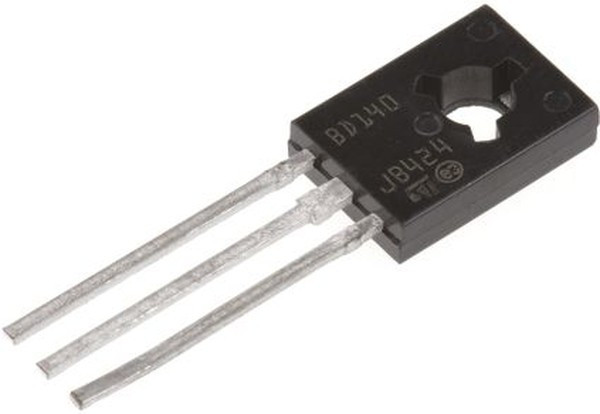

| base product number | BD140 -> |
| число контактов | 3 |
| collector- base voltage vcbo | -80 V |
| collector- base voltage vcbo: | 80 V |
| collector-emitter saturation voltage | -0.5 V, +0.5 V |
| collector-emitter saturation voltage: | 500 mV |
| collector- emitter voltage vceo max | -80 V |
| collector- emitter voltage vceo max: | 80 V |
| configuration | Single |
| configuration: | Single |
| continuous collector current | -1.5 A |
| continuous collector current: | -1.5 A |
| current - collector cutoff (max) | 100nA (ICBO) |
| current - collector (ic) (max) | 1.5A |
| dc collector/base gain hfe min | 40 |
| dc collector/base gain hfe min: | 40 |
| dc current gain hfe max | 250 |
| dc current gain hfe max: | 250 |
| dc current gain (hfe) (min) @ ic, vce | 40 @ 150mA, 2V |
| длина | 7.8мм |
| eccn | EAR99 |
| emitter- base voltage vebo | -5 V |
| emitter- base voltage vebo: | 5 V |
| factory pack quantity | 2000 |
| factory pack quantity: factory pack quantity: | 2000 |
| height | 10.8 mm |
| htsus | 8541.29.0095 |
| категория | Электронные компоненты/Транзисторы |
| количество элементов на ис | 1 |
| length | 7.8 mm |
| максимальная рабочая температура | +150 °C |
| максимальное напряжение эмиттер-база | 5 В |
| максимальное напряжение коллектор-база | 80 V |
| максимальное напряжение к-э (коллектор-эмиттер) | 80 V |
| максимальное напряжение насыщения коллектор-эмиттер | 0,5 В |
| максимальное рассеяние мощности | 1,25 W |
| максимальный пост. ток коллектора | 3 A |
| manufacturer | STMicroelectronics |
| manufacturer: | STMicroelectronics |
| maximum collector base voltage | 80 V |
| maximum collector emitter voltage | 80 V |
| maximum dc collector current | 1.5 A |
| maximum dc collector current: | 1.5 A |
| maximum emitter base voltage | 5 V |
| maximum operating temperature | +150 C |
| maximum operating temperature: | +150 C |
| maximum power dissipation | 1.25 W |
| минимальная рабочая температура | -65 °C |
| минимальный коэффициент усиления по постоянному току | 25 |
| minimum dc current gain | 100, 40 |
| minimum operating temperature | -65 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of elements per chip | 1 |
| operating temperature | 150В°C (TJ) |
| other related documents | http://www.st.com/web/catalog/sense_power/FM100/CL |
| package | Tube |
| package / case | TO-225AA, TO-126-3 |
| package / case: | SOT-32-3 |
| package type | SOT-32 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004825010 |
| pd - power dissipation | 12.5 W |
| pd - power dissipation: | 1.25 W |
| pin count | 3 |
| power - max | 1.25W |
| product category | Bipolar Transistors-BJT |
| product category: | Bipolar Transistors-BJT |
| product type: | BJTs-Bipolar Transistors |
| размеры | 10.8 x 7.8 x 2.7мм |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | 500V Transistors |
| series: | BD140 |
| subcategory: | Transistors |
| supplier device package | SOT-32-3 |
| technology: | Si |
| тип корпуса | SOT-32 |
| тип монтажа | Монтаж на плату в отверстия |
| тип транзистора | PNP |
| transistor configuration | Одинарный |
| transistor polarity | PNP |
| transistor polarity: | PNP |
| transistor type | PNP |
| unit weight | 0.002116 oz |
| vce saturation (max) @ ib, ic | 500mV @ 50mA, 500mA |
| voltage - collector emitter breakdown (max) | 80V |
| Время загрузки | 14:01:07 |
| Ширина | 2.7 мм |
| width | 2.7 mm |
