| Дата загрузки | 23.02.2024 |
| Информация о производителе | |
| Производитель | DIODES INC. |
| Бренд | DIODES INC. |
| Основные | |
| aec qualified number | AEC-Q101 |
| automotive | Yes |
| collector- base voltage vcbo: | 80 V |
| collector- emitter voltage vceo max: | 60 V |
| configuration | Single |
| configuration: | Single |
| continuous collector current: | 0.8 A |
| dc collector/base gain hfe min: | 5000 |
| dc current gain hfe max: | 5000 |
| eccn (us) | ear99 |
| emitter- base voltage vebo: | 10 V |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 4000 |
| категория | Электронные компоненты/Транзисторы |
| lead shape | Through Hole |
| manufacturer: | Diodes Incorporated |
| maximum collector base voltage | 80 V |
| maximum collector base voltage (v) | 80 |
| maximum collector cut-off current | 100nA |
| maximum collector cut-off current (ua) | 0.1 |
| maximum collector emitter saturation voltage | 1.25 V |
| maximum collector-emitter saturation voltage (v) | 1.25@8mA@800mA |
| maximum collector emitter voltage | 60 V |
| maximum collector-emitter voltage (v) | 60 |
| maximum continuous collector current | 800 mA |
| maximum continuous dc collector current (a) | 0.8 |
| maximum dc collector current: | 0.8 A |
| maximum emitter base voltage | 10 V |
| maximum emitter base voltage (v) | 10 |
| maximum operating temperature | +200 °C |
| maximum operating temperature: | +150 C |
| maximum operating temperature (°c) | 200 |
| maximum power dissipation | 1 W |
| maximum power dissipation (mw) | 1000 |
| maximum power dissipation - (mw) | 1000 |
| military | No |
| minimum dc current gain | 10000@500mA@5VI5000@100mA@5V |
| minimum operating temperature | -55 °C |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | -55 |
| mounting | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of elements per chip | 1 |
| operating temperature - (??c) | -55~200 |
| package / case: | TO-92-3 |
| package type | TO-92 |
| packaging: | Bulk |
| партномер | 8014710042 |
| part status | active |
| pcb changed | 3 |
| pd - power dissipation: | 1 W |
| pin count | 3 |
| ppap | No |
| product category: | Darlington Transistors |
| product type: | Darlington Transistors |

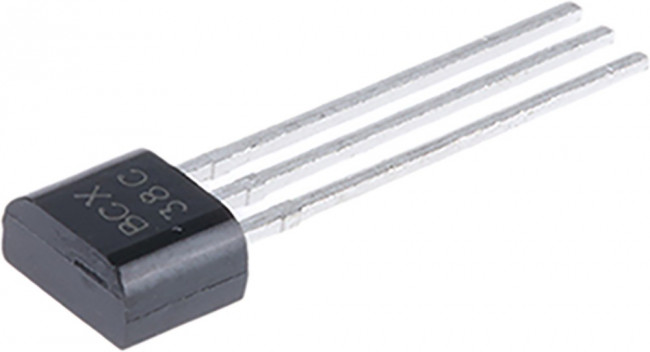

| series: | BCX38 |
| standard package name | TO-92 |
| subcategory: | Transistors |
| supplier package | TO-92 |
| transistor configuration | Single |
| transistor polarity: | NPN |
| transistor type | NPN |
| type | NPN |
| Время загрузки | 0:09:26 |
| width | 2.41mm |
