BCW71

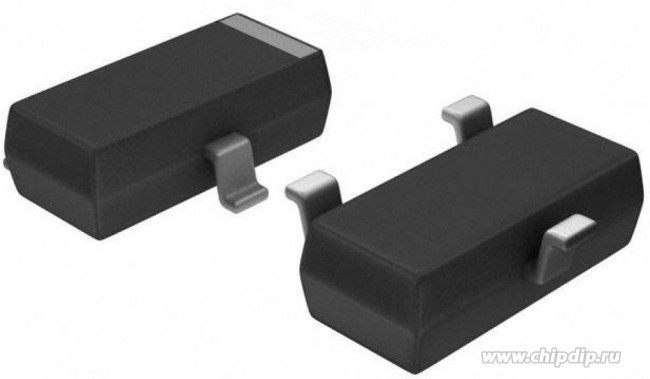

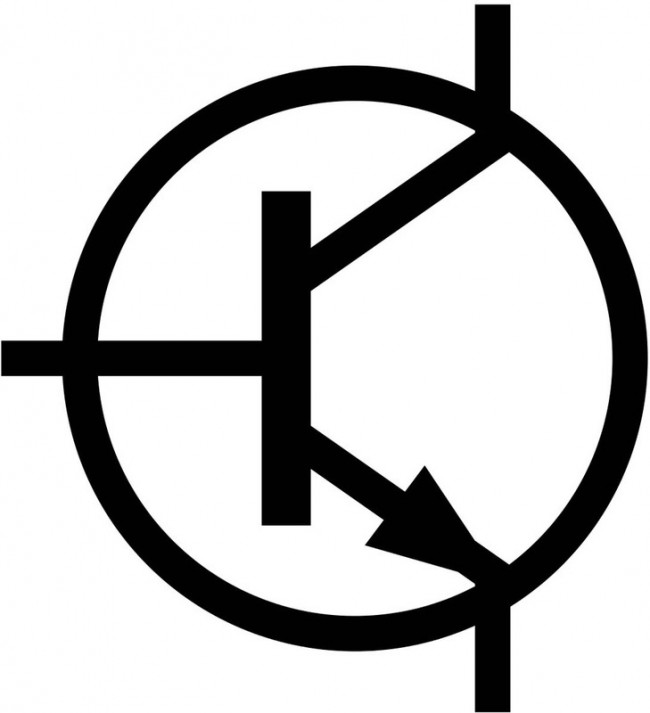

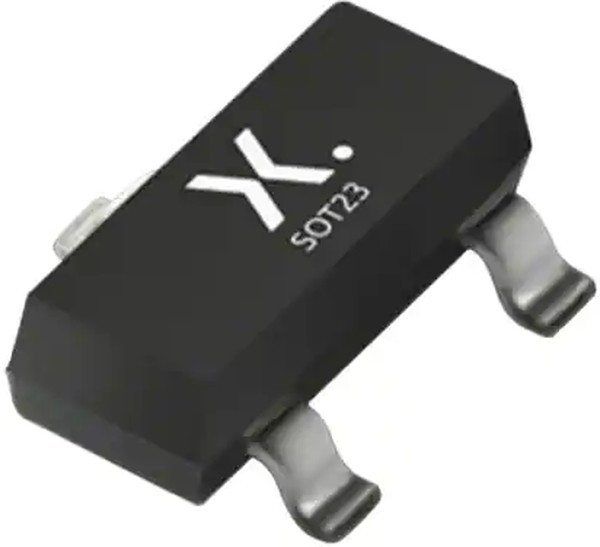

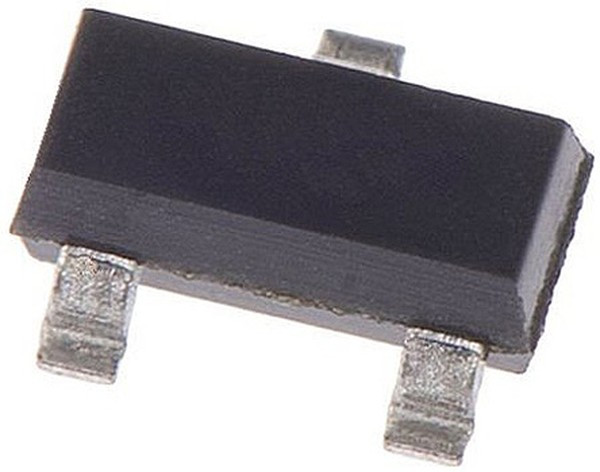

ЭлектроэлементTRANSISTOR, NPN, SOT-23; Transistor Polarity:NPN; Collector Emitter Voltage V(br)ceo:45V; Transition Frequency ft:-; Power Dissipation Pd:250mW; DC Collector Current:100mA; DC Current Gain hFE:90hFE; Transistor Case Style:SOT-23; No. of Pins:3Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2018); Collector Emitter Saturation Voltage Vce(on):250mV; Continuous Collector Current Ic Max:100mA; Current Ic Continuous a Max:100mA; Current Ic hFE:2mA; Device Marking:BCW71; Gain Bandwidth ft Min:100MHz; Gain Bandwidth ft Typ:300MHz; Hfe Min:110; No. of Transistors:1; Noise Factor Max:10dB; Operating Temperature Min:-65°C; Operating Temperature Range:-65°C to +150°C; Power Dissipation Ptot Max:250mW; SMD Marking:K1; Termination Type:Surface Mount Device; Voltage Vcbo:50V
