BC817-25W,135

Оставить отзыв
В избранноеВ сравнение
Электронные компоненты Транзисторы Биполярные (BJTs) Nexperia BC817-25W,135
Nexperia B.V.
Дата загрузки21.02.2024
Информация о производителе
ПроизводительNexperia B.V.
БрендNexperia B.V.
Основные
63
+
Бонус: 1.26 !
Бонусная программа
Итого: 63
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты

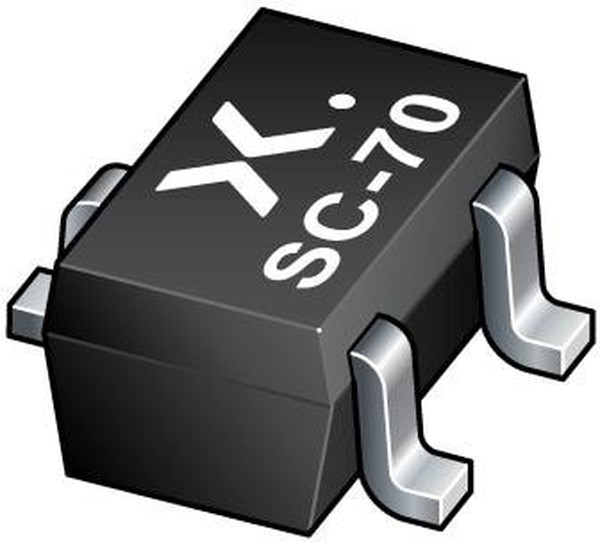

SOT323 Surface-Mounted Package ProductsNexperia SOT323 Surface-Mounted Package Products offer a plastic, 3 leads, 1.3mm pitch, 2mm x 1.25mm x 0.95mm body surface-mounted package. The SOT23 package has been a constant for the last 50 years, leading to many offspring, such as the SOT223 and SOT323. The SOT323 offers an industry code of SC-70, a descriptive code of SOT (small outline transistor), and a footprint area of 6.23mm 2.
Дата загрузки21.02.2024
Информация о производителе
ПроизводительNexperia B.V.
БрендNexperia B.V.
Основные
automotiveNo
collector- base voltage vcbo:50 V
collector-emitter saturation voltage:700 mV
collector- emitter voltage vceo max:45 V
configurationSingle
configuration:Single
dc collector/base gain hfe min:160 at 100 mA, 1 V, 40 at 500 mA, 1 V
dc current gain hfe max:160 at 100 mA, 1 V
eccn (us)EAR99
emitter- base voltage vebo:5 V
eu rohsCompliant
factory pack quantity: factory pack quantity:10000
gain bandwidth product ft:100 MHz
категорияЭлектронные компоненты/Транзисторы
manufacturer:Nexperia
maximum collector base voltage (v)50
maximum collector-emitter saturation voltage (v)0.7@50mA@500mA
maximum collector-emitter voltage (v)45
maximum dc collector current:500 mA
maximum dc collector current (a)0.5
maximum emitter base voltage (v)5
maximum operating temperature:+150 C
maximum operating temperature (°c)150
maximum power dissipation (mw)290
maximum transition frequency (mhz)100(Min)
minimum dc current gain40@500mA@1V|160@100mA@1V
minimum operating temperature:-65 C
minimum operating temperature (°c)-65
mountingSurface Mount
mounting style:SMD/SMT
number of elements per chip1
package/case:SOT-323-3
packagingTape and Reel
партномер8007593657
part # aliases:9,34022E+11
part statusActive
pcb changed3
pd - power dissipation:200 mW
pin count3
ppapNo
product categoryBipolar Small Signal
product category:Bipolar Transistors-BJT
product type:BJTs-Bipolar Transistors
series:BC817
standard package nameSOT
subcategory:Transistors
supplier packageSC-70
supplier temperature gradeAutomotive
technology:Si
transistor polarity:NPN
typeNPN
