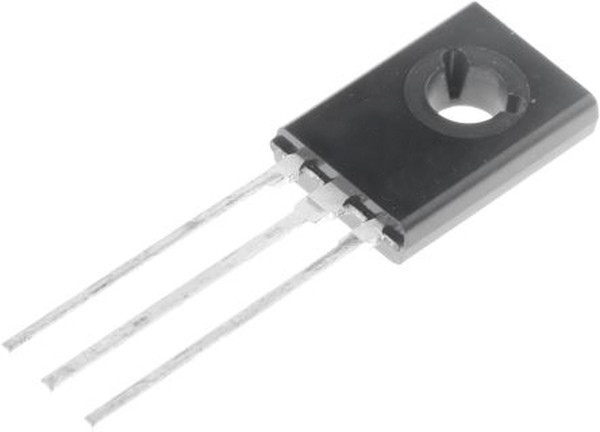

2N5191G

TRANSISTOR, NPN, TO-225; Transistor Polarity:NPN; Collector Emitter Voltage V(br)ceo:60V; Transition Frequency ft:2MHz; Power Dissipation Pd:40W; DC Collector Current:4A; DC Current Gain hFE:2hFE; Transistor Case Style:TO-225AA; No. of Pins:3Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (27-Jun-2018); Collector Emitter Saturation Voltage Vce(on):600mV; Complementary Device:2N5194 / 2N5195; Continuous Collector Current Ic Max:4A; Current Ic Continuous a Max:4A; Current Ic hFE:4A; Gain Bandwidth ft Min:2MHz; Gain Bandwidth ft Typ:2MHz; Hfe Min:10; Operating Temperature Min:-65°C; Operating Temperature Range:-65°C to +150°C; Power Dissipation Ptot Max:40W; Termination Type:Through Hole; Voltage Vcbo:60V
