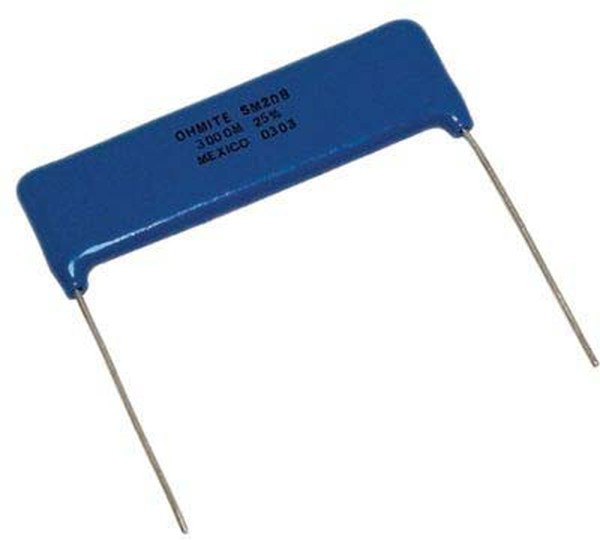

SM108035003FE, Резистор в сквозное отверстие, Slim-Mox, 500 кОм, Серия Slim-Mox, 2.5 Вт, ± 1%, Радиальные Выводы

Пассивные Компоненты\Резисторы - Фиксированное Значение\Резисторы с Монтажом в Сквозное ОтверстиеThe Slim-Mox series from Ohmite precision thick film planar resistors. They provide stable performance for a wide range of resistance values with voltage ratings up to 25KV. Low temperature coefficients are available for high stability circuit applications. The space-saving planar package offers and alternative to traditional high voltage resistors. Typical applications include HV power supplies, medical instrumentation, current pulse limiters and ionization chambers. • Thick film on alumina resistive element, high dielectric and low out gassing epoxy coating• Resistance range from 100 ohm to 5000Mohm• Power rating range from 0.25W to 5.5W and voltage rating range from 1.5KV to 25KV• 0.5% to 20% tolerance• Operating temperature range from -55°C to +110°C• Low resistor noise• Non inductive, radial terminals• High voltage resistor
