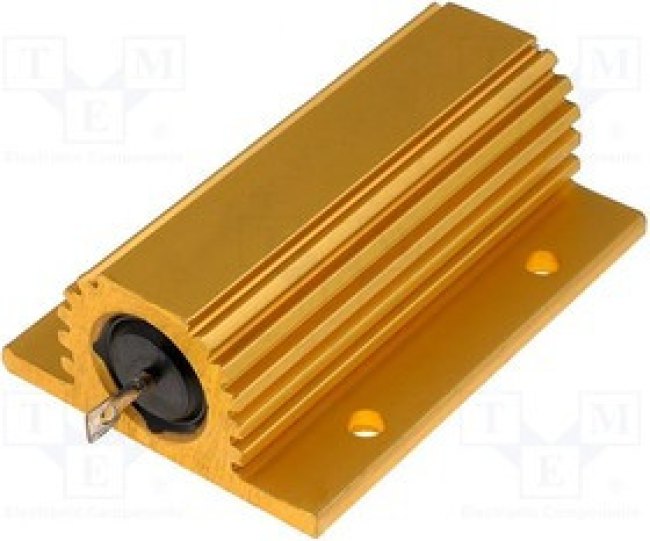

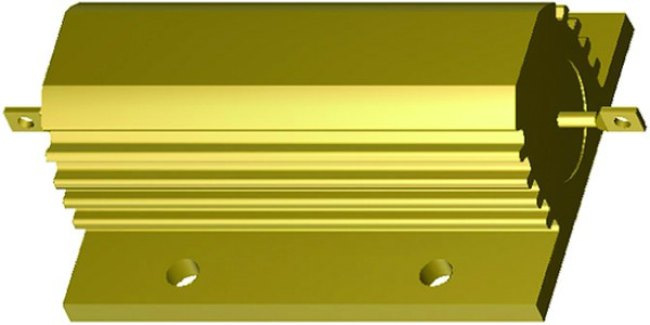

HSC10033RJ

ЭлектроэлементRESISTOR, 100W 5% 33R; Resistance:33ohm; Product Range:HS Series; Power Rating:100W; Resistance Tolerance:В± 5%; Resistor Terminals:Solder Lug; Voltage Rating:1.9kV; Resistor Element Material:Wirewound; Temperature Coefficient:В± 50ppm/В°C; SVHC:No SVHC (27-Jun-2018); External Depth:26mm; External Length / Height:65.5mm; External Width:47.5mm; Fixing Centres LxW:35x37; Full Power Rating Temperature:20В°C; Insulation Resistance:10000mohm; No. of Pins:2Pins; Operating Temperature Max:250В°C; Operating Temperature Min:-55В°C; Operating Temperature Range:-55В°C to +250В°C; Resistor Mounting:Panel; Temperature Coeff. +:50ppm/В°C; Temperature Coeff. -:50ppm/В°C; Temperature Rise:1.1В°C; Tolerance +:5%; Tolerance -:5%; Voltage Rating VAC:1900V
