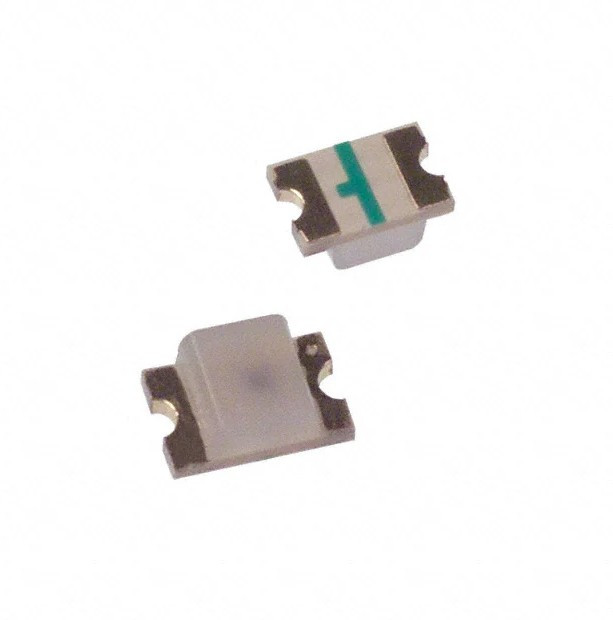

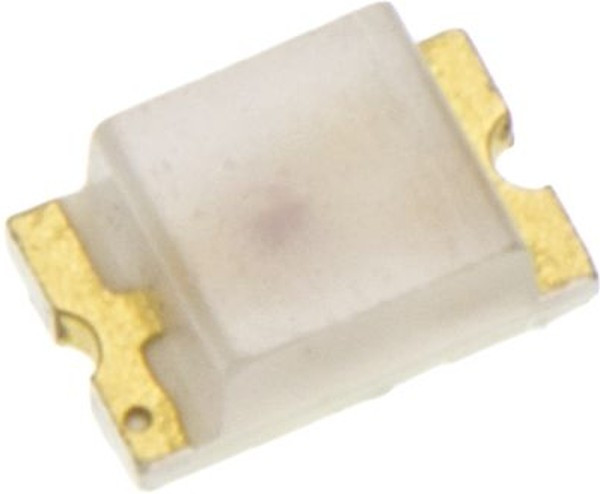

HSMG-C170

ЭлектроэлементLED, GREEN, 1.25MM X 1.4MM, 15MCD, 527NM; LED Colour:Green; LED Mounting:SMD; LED Case Size:1.25mm x 1.4mm; Forward Current If:20mA; Forward Voltage:2.2V; Wavelength Typ:572nm; Luminous Intensity:15mcd; Viewing Angle:170°; Lens Shape:Rectangular; Product Range: HSMG-Cxxx; Automotive Qualification Standard:-; MSL:MSL 2A - 4 weeks; SVHC:No SVHC (27-Jun-2018); Bulb Size:1.25mm x 1.4mm; Dominant Wavelength:572nm; Dominant Wavelength Typ:572nm; External Depth:0.8mm; External Length / Height:2mm; External Width:1.25mm; Forward Current If Max:20mA; Forward Voltage VF Max:2.6V; LED Type:Standard; Light Area Height:1mm; Luminous Intensity Min:4mcd; Luminous Intensity Typ:15mcd; No. of Pins:2Pins; Operating Temperature Max:85°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +85°C; Opto Mounting Orientation:Top; PIV Max:5V; Peak Forward Current:20mA; Peak Wavelength:570nm; Storage Temperature Max:85°C; Storage Temperature Min:-40°C; Voltage Vf Typ:2.2V
