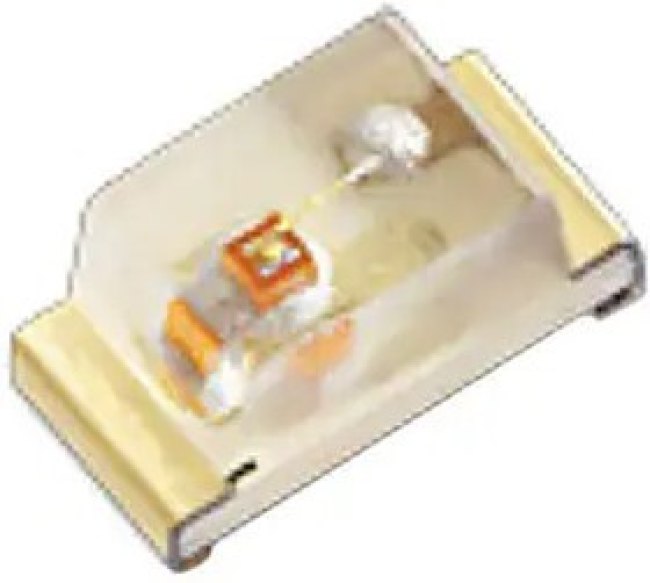

APT1608LVBC/D
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементColorless transparence 470nm~470nm blue 120° 0603 LIght EmIttIng DIodes (LED)
| Основные | |
| Производитель | Kingbright |
| Бренд | Kingbright |
| Информация о производителе | |
| color | Blue |
| configuration | Standard |
| current - test | 2mA |
| Дата загрузки | 06.05.2024 |
| eccn | EAR99 |
| environmental information | http://www.kingbrightusa.com/webimages/certificate |
| factory pack quantity | 2000 |
| factory pack quantity: factory pack quantity: | 2000 |
| forward current | 30(mA) |
| forward voltage | 3(V) |
| height (max) | 0.75mm |
| high brightness | No |
| htsus | 8541.40.2000 |
| if - forward current | 2 mA |
| if - forward current: | 2 mA |
| illumination color | Blue |
| категория | Оптоэлектроника/Светодиоды видимого спектра |
| length | 1.6 mm |
| lens color | Colorless |
| lens color/style | Water Clear |
| lens dimensions | 0.8X0.25X0.75(mm) |
| lens dimensions: | 1.2 mm x 0.8 mm |
| lens shape | Rectangular |
| lens shape: | Rectangular |
| lens size | 1.10mm x 0.80mm |
| lens style | Rectangle with Flat Top |
| lens transparency | Clear |
| lens transparency: | Water Clear |
| lens type | Colorless |
| luminous intensity | 24 mcd |
| luminous intensity: | 24 mcd |
| manufacturer | Kingbright |
| manufacturer: | Kingbright |
| maximum forward current | 30(mA) |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| millicandela rating | 24mcd |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| moisture sensitive | Yes |
| moisture sensitive: | Yes |
| moisture sensitivity level (msl) | 3 (168 Hours) |
| mounting | surface mount |
| mounting orientation | Top Mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| orientation | Top View |
| orientation: | Top View |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | 0603(1608 metric) |
| package / case: | 0603(1608 metric) |
| package type | SMD |
| packaging | Reel |
| партномер | 8001942562 |
| peak wavelength | 465(nm) |
| pin count | 2 |
| power dissipation | 120(W) |
| power rating | 120 mW |
| power rating: | 120 mW |
| product | Blue LEDs |
| product: | Blue LEDs |
| product category | Standard LEDs-SMD |
| product category: | Standard LEDs-SMD |
| product depth (mm) | 0.8(mm) |
| product height (mm) | 0.75(mm) |
| product length (mm) | 1.6(mm) |
| product type: | LED-Standard |
| rad hardened | No |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | APT1608 |
| series: | APT1608 |
| size / dimension | 1.60mm L x 0.80mm W |
| subcategory: | LEDs |
| supplier device package | 2-SMD |
| type | Uni-Color |
| вес, г | 0.01 |
| vf - forward voltage | 2.65 V |
| vf - forward voltage: | 2.65 V |
| video file | Kingbright HELI-Dome Surface Mount LEDs | Digi-Key |
| viewing angle | 120 deg |
| viewing angle: | 120 deg |
| voltage - forward (vf) (typ) | 2.65V |
| Время загрузки | 14:01:31 |
| wavelength/color temperature | 470 nm |
| wavelength - dominant | 470nm |
| wavelength - peak | 465nm |
| width | 0.8 mm |
