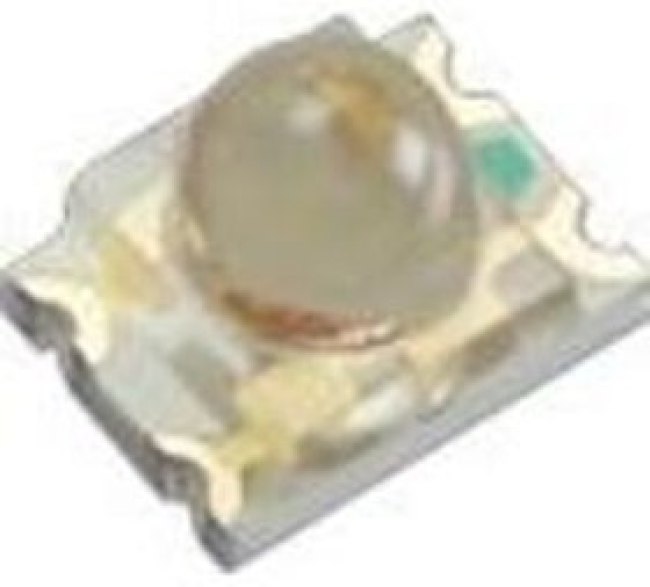

APBD3224SURKCGKC-F01, Standard LEDs - SMD Red/Grn 630/570nm Water Clr 800/300mcd
Оставить отзыв
В избранноеВ сравнение
Артикул: APBD3224SURKCGKC-F01
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Optoelectronics\LED Lighting\LED Emitters\Standard LEDs - SMD3.2X2.4mm Bi-Color Red/Green SMD LED; Water Clear; 630nm/570nm; 20° Viewing | Kingbright APBD3224SURKCGKC-F01
| Основные | |
| Производитель | Kingbright |
| Бренд | Kingbright |
| Информация о производителе | |
| automotive | No |
| color | Green, Red |
| configuration | Independent |
| current - test | 20mA Green, 20mA Red |
| Дата загрузки | 06.05.2024 |
| factory pack quantity | 1500 |
| factory pack quantity: factory pack quantity: | 1500 |
| height (max) | 2.40mm |
| high brightness | Yes |
| high power | No |
| if - forward current | 20 mA |
| if - forward current: | 20 mA |
| illumination color | Red, Green |
| intensity | 1300mcdI280mcd |
| категория | Оптоэлектроника/Светодиоды видимого спектра |
| led material | AlGaInP |
| lens appearance | Colorless Non Diffused |
| lens color | Colorless |
| lens dimensions | 1.8 mm |
| lens dimensions: | 1.8 mm |
| lens shape | Dome |
| lens shape: | Dome |
| lens shape type | Circular |
| lens size | 1.80mm Dia |
| lens style | Round with Domed Top |
| lens transparency | Clear |
| lens transparency: | Water Clear |
| luminous intensity | 1.3 cd, 300 mcd |
| luminous intensity: | 1.3 cd, 300 mcd |
| manufacturer | Kingbright |
| manufacturer: | Kingbright |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| military | No |
| millicandela rating | 280mcd Green, 400mcd Red |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| moisture sensitive | Yes |
| moisture sensitive: | Yes |
| mounting orientation | Top Mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of leds | 2 |
| operating temperature - (??c) | -40~85 |
| orientation | Top View |
| orientation: | Top View |
| package / case | 4-SMD, No Lead |
| package / case: | 1210(3224 metric) |
| packaging | Tape and Reel |
| партномер | 8005046341 |
| part status | active |
| pin count | 4 |
| power rating | 75 mW |
| power rating: | 75 mW |
| product | Bi-Color LEDs |
| product: | Bi-Color LEDs |
| product category: | Standard LEDs-SMD |
| product type: | LED-Standard |
| size / dimension | 3.20mm L x 2.40mm W |
| standard package name | Chip LED |
| subcategory: | LEDs |
| supplier device package | Chip LED |
| supplier package | Chip LED |
| type: | Multi-Color LEDs |
| вес, г | 0.01 |
| vf - forward voltage | 1.95 V, 2.1 V |
| vf - forward voltage: | 1.95 V, 2.1 V |
| viewing angle | 20В° |
| viewing angle: | 20 deg |
| voltage - forward (vf) (typ) | 2.1V Green, 1.95V Red |
| Время загрузки | 13:46:57 |
| vr - reverse voltage | 5 V |
| vr - reverse voltage: | 5 V |
| wavelength - dominant | 570nm Green, 630nm Red |
| wavelength - peak | 574nm Green, 645nm Red |
