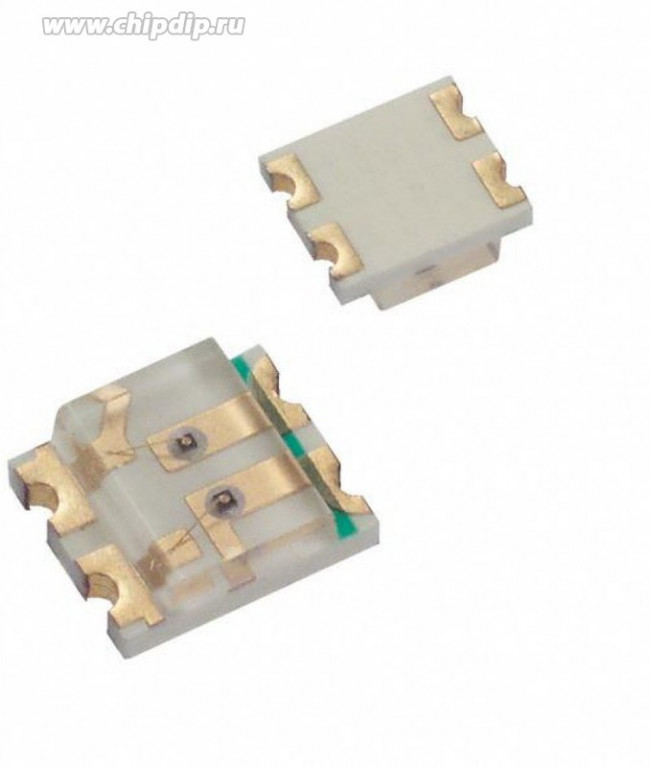

Светодиоды дискретныекол-во в упаковке: 3000, корпус: LED12103225METRICДвухцветный светодиод, зеленый/красный, 565 нм/630 нм, 4-контактный чип, светодиод T/R
Основные | |
automotive | No |
capacitance value (pf) | 35/20 |
color | Green/Red |
dominant wavelength (nm) | 569/621 |
eccn (us) | EAR99 |
eu rohs | Compliant |
factory pack quantity | 3000 |
high brightness | No |
high power | No |
if - forward current | 20 mA |
illumination color | Red, Green |
intensity | 6mcd|2.5mcd |
internal protection | No |
lead shape | No Lead |
lead standoff | No |
led material | GaP|GaAsP |
length | 3.2 mm |
lens appearance | Water Clear |
lens color/style | Water Clear |
lens dimensions | 2 mm x 2.7 mm |
lens dimensions (mm) | 2.06x2.7x0.6 |
lens shape | Rectangular |
lens shape type | Rectangular |
luminous intensity | 6 mcd, 2.5 mcd |
manufacturer | Lite-On |
maximum forward current (ma) | 30 |
maximum forward voltage (v) | 2.6 |
maximum operating temperature | + 85 C |
maximum operating temperature (°c) | 85 |
maximum power dissipation (mw) | 100 |
minimum operating temperature | - 55 C |
minimum operating temperature (°c) | -55 |
mounting | Surface Mount |
mounting orientation | Top Mount |
mounting style | SMD/SMT |
number of leds | 1 |
orientation | Top View |
package / case | 1311 (3227 metric) |
packaging | Cut Tape or Reel |
part status | Active |
pcb changed | 4 |
peak wavelength | 565 nm, 630 nm |
peak wavelength (nm) | 565/630 |
pin count | 4 |
ppap | No |
product | Bi-Color LEDs |
product category | Standard LEDs - SMD |
product type | LED - Standard |
reverse voltage (v) | 5 |
special color | Green/Red |
standard package name | Chip LED |
subcategory | LEDs |
supplier color | Green/Red |
supplier package | Chip LED |
test current (ma) | 10 |
type | Bi-Color |
typical forward voltage (v) | 2.1/2 |
вес, г | 0.041 |
vf - forward voltage | 2.1 V, 2 V |
viewing angle | 130 deg |
viewing angle (°) | 130 |
wavelength/color temperature | 569 nm, 621 nm |
width | 2.7 mm |
