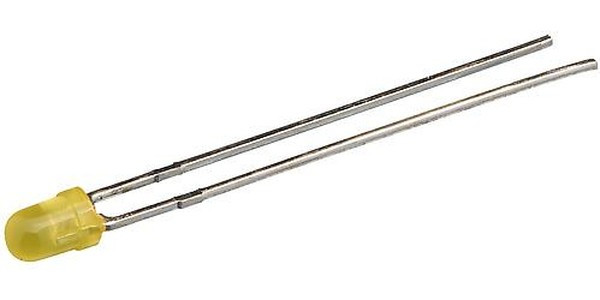

Светодиоды дискретныекол-во в упаковке: 1000LED, LOW CURRENT, 3MM, YELLOW; LED / Lamp Size: 3mm / T-1; Colour, LED: Yellow; Luminous Intensity, Typ: 3.2mcd; Angle, Viewing: 60°; Current, Forward If: 2mA; Voltage, Vf Max: 2.5V; Temperature, Operating Range: -40°C to +85°C; Case Style: Radial; Current, If Luminous Intensity: 2mA; Current, If Max: 7mA; Depth, Lead Cross-section: 0.5mm; Diameter, External: 2.9mm; LED Colour Presentation: ; Length / Height, External: 4.6mm; Length, Lead: 27mm; Lens Type: Tinted Diffused; Luminous Intensity, Min @ If: 0.8mcd; Pitch, Lead: 2.54mm; Voltage, PIV Max: 5V; Voltage, Vf Typ: 2.1V; Wavelength, Peak: 590nm; Wavelength, Typ: 590nm; Width, Lead Cross-section: 0.5mm Цвета свечения жёлтый
