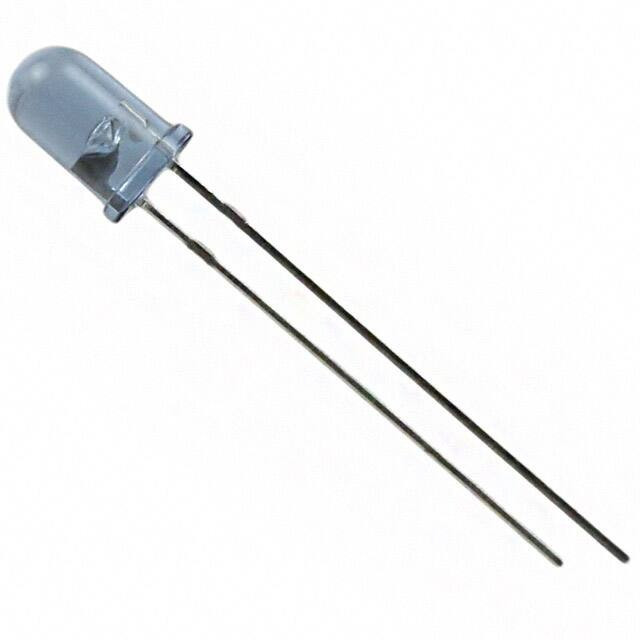

IR333-A

Подробное описание

32 ₽

– +

Бонус: 0.64 !

Бонусная программа

Итого: 32 ₽

Купить

Infrared (IR) Emitter 940nm 1.2V 100mA 7.8mW/sr @ 20mA 20В° Radial

Основные
current - dc forward (if) (max)	100mA
eccn	EAR99
htsus	8541.40.2000
if - forward current	1A
maximum operating temperature	85в„ѓ
minimum operating temperature	-40в„ѓ
moisture sensitivity level (msl)	1 (Unlimited)
mounting type	Through Hole
operating temperature	-40В°C ~ 85В°C (TA)
orientation	Top View
package	Bulk
package / case	Radial
radiant intensity	20mW/sr @ 20mA
radiant intensity (ie) min @ if	7.8mW/sr @ 20mA
rohs status	ROHS3 Compliant
type	Infrared (IR)
vf - forward voltage	1.2V
viewing angle	20В°
voltage - forward (vf) (typ)	1.2V
wavelength	940nm
